Examine the logic circuit in Figure 1. Fig. 1 A. Write the Boolean expression for output: X= B. In Multisim, mount the appropriate logic gate(s) to the breadboard. Connect the inputs to Vcc, +5 V (using pull-up resistors) and GND (using SPST switches). Connect output to LED monitor. Play with different input values by toggling the switches and include two screenshots of your Multisim circuit one with LED "On" and the other with LED "Off." C. Verify the operation of your circuit by setting the toggle switches to each set of input values in Table. I and comparing the outputs observed to the corresponding outputs in the table. Inputs ABCD A'B'C' AB'C' A'B'D X=A'B'C' + AB'C' + A'B'D (1 OR 0) 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 Table. 1 Output LED Status (On or Off)

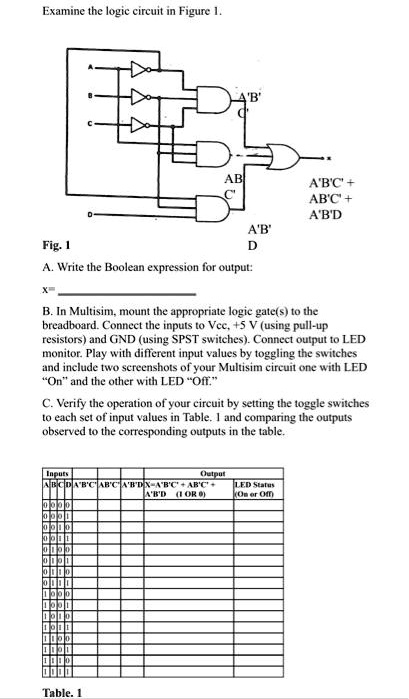

          Examine the logic circuit in Figure 1.
Fig. 1
A. Write the Boolean expression for output:
X=
B. In Multisim, mount the appropriate logic gate(s) to the
breadboard. Connect the inputs to Vcc, +5 V (using pull-up
resistors) and GND (using SPST switches). Connect output to LED
monitor. Play with different input values by toggling the switches
and include two screenshots of your Multisim circuit one with LED
"On" and the other with LED "Off."
C. Verify the operation of your circuit by setting the toggle switches
to each set of input values in Table. I and comparing the outputs
observed to the corresponding outputs in the table.
Inputs
ABCD A'B'C' AB'C' A'B'D X=A'B'C' + AB'C' +
A'B'D (1 OR 0)
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Table. 1
Output
LED Status
(On or Off)

Examine the logic circuit in Figure 1.
Fig. 1
A. Write the Boolean expression for output:
X=
B. In Multisim, mount the appropriate logic gate(s) to the
breadboard. Connect the inputs to Vcc, +5 V (using pull-up
resistors) and GND (using SPST switches). Connect output to LED
monitor. Play with different input values by toggling the switches
and include two screenshots of your Multisim circuit one with LED
"On" and the other with LED "Off."
C. Verify the operation of your circuit by setting the toggle switches
to each set of input values in Table. I and comparing the outputs
observed to the corresponding outputs in the table.
Inputs
ABCD A'B'C' AB'C' A'B'D X=A'B'C' + AB'C' +
A'B'D (1 OR 0)
0000
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Table. 1
Output
LED Status
(On or Off)
