Question

The gain in frequency domain of a physiological system is given by G = 10^{-2} (100 + s) (1000 + s). Apply your understanding of frequency analysis of the given physiological system by solving the following. (a) Evaluate the gain in decibels. (8 marks) (b) Compute the gain of each term of the expression obtained from Q3(a) and the pole frequencies. (9 marks) (c) Construct a clearly labelled asymptotic Bode plot. (10 marks) (d) Compute the error at each of the pole frequencies. (6 marks)

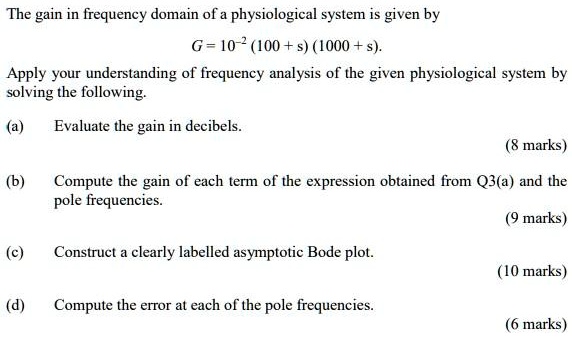

          The gain in frequency domain of a physiological system is given by
G = 10^{-2} (100 + s) (1000 + s).
Apply your understanding of frequency analysis of the given physiological system by
solving the following.
(a) Evaluate the gain in decibels.
(8 marks)
(b) Compute the gain of each term of the expression obtained from Q3(a) and the
pole frequencies.
(9 marks)
(c) Construct a clearly labelled asymptotic Bode plot.
(10 marks)
(d) Compute the error at each of the pole frequencies.
(6 marks)

The gain in frequency domain of a physiological system is given by
G = 10^-2 (100 + s) (1000 + s).
Apply your understanding of frequency analysis of the given physiological system by
solving the following.
(a) Evaluate the gain in decibels.
(8 marks)
(b) Compute the gain of each term of the expression obtained from Q3(a) and the
pole frequencies.
(9 marks)
(c) Construct a clearly labelled asymptotic Bode plot.
(10 marks)
(d) Compute the error at each of the pole frequencies.
(6 marks)
