Question

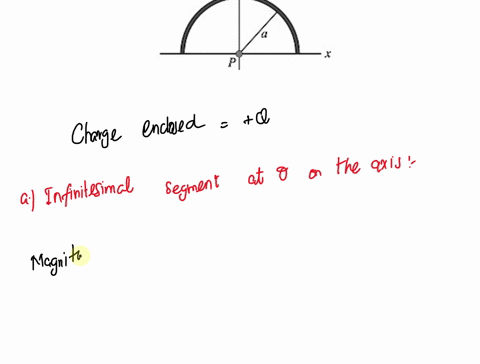

Positive charge Q is uniformly distributed around a semicircle of radius a as shown in (Figure 1). Find the magnitude and direction of the resulting electric field at point P, the center of curvature of the semicircle. How much charge is on a segment ds? Express your answer in terms of some, all, or none of the variables Q, a, $\theta$, $d\theta$, and the constant $\pi$. dQ = \frac{Q}{\pi}d\theta Consider an infinitesimal segment located at an angular position $\theta$ on the semicircle, measured from the lower right corner of the semicircle at x = a, y = 0. (Thus $\theta$ = 0 at x = 0, y = a and $\theta$ = $\pi$ at x = -a, y = 0.) What are the x- and y- components of the electric field at point P ($dE_x$ and d$E_y$) produced by just this segment? Express your answers separated by a comma in terms of some, all, or none of the variables Q, a, $\theta$, d$\theta$, and the constants k and $\pi$.

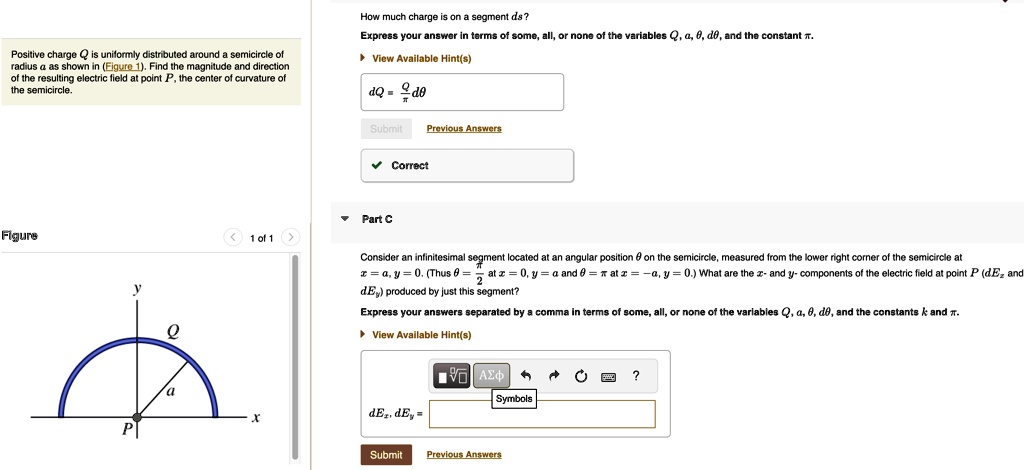

          Positive charge Q is uniformly distributed around a semicircle of
radius a as shown in (Figure 1). Find the magnitude and direction
of the resulting electric field at point P, the center of curvature of
the semicircle.
How much charge is on a segment ds?
Express your answer in terms of some, all, or none of the variables Q, a, $\theta$, $d\theta$, and the constant $\pi$.
dQ = \frac{Q}{\pi}d\theta
Consider an infinitesimal segment located at an angular position $\theta$ on the semicircle, measured from the lower right corner of the semicircle at
x = a, y = 0. (Thus $\theta$ = 0 at x = 0, y = a and $\theta$ = $\pi$ at x = -a, y = 0.) What are the x- and y- components of the electric field at point P ($dE_x$ and
d$E_y$) produced by just this segment?
Express your answers separated by a comma in terms of some, all, or none of the variables Q, a, $\theta$, d$\theta$, and the constants k and $\pi$.

Positive charge Q is uniformly distributed around a semicircle of
radius a as shown in (Figure 1). Find the magnitude and direction
of the resulting electric field at point P, the center of curvature of
the semicircle.
How much charge is on a segment ds?
Express your answer in terms of some, all, or none of the variables Q, a, θ, dθ, and the constant π.
dQ = (Q)/(π)dθConsider an infinitesimal segment located at an angular position θ on the semicircle, measured from the lower right corner of the semicircle at
x = a, y = 0. (Thus θ = 0 at x = 0, y = a and θ = π at x = -a, y = 0.) What are the x- and y- components of the electric field at point P (dEx and
dEy) produced by just this segment?
Express your answers separated by a comma in terms of some, all, or none of the variables Q, a, θ, dθ, and the constants k and π.
