QUESTION 2: Question: Make a detail/working drawing of the sand casting BASE (Figure 2) used for manufacturing in the workshop. (Material:-Cast iron) (Use an orthographic projection, scale, sections, dimensions according- SANS 0111, notes and machining symbols of you own choice to complete the detail/working drawing.) Notes: 1. Aluminium Die-casting -5 Off required 2. Allow 5mm on to the casting for machining of the top surface 3. Milling process to be used on the top surface 4. General tolerance ± 0.3 mm....... 5. All fillets and rounds R3. 6. Paint component black Figure 2 See Note 2 and 3

          QUESTION 2:
Question:
Make a detail/working drawing of the sand casting BASE (Figure 2)
used for manufacturing in the workshop. (Material:-Cast iron)
(Use an orthographic projection, scale, sections, dimensions according-
SANS 0111, notes and machining symbols of you own choice to
complete the detail/working drawing.)
Notes:
1. Aluminium Die-casting -5 Off required
2. Allow 5mm on to the casting for machining of the top surface
3. Milling process to be used on the top surface
4. General tolerance ± 0.3 mm.......
5. All fillets and rounds R3.
6. Paint component black

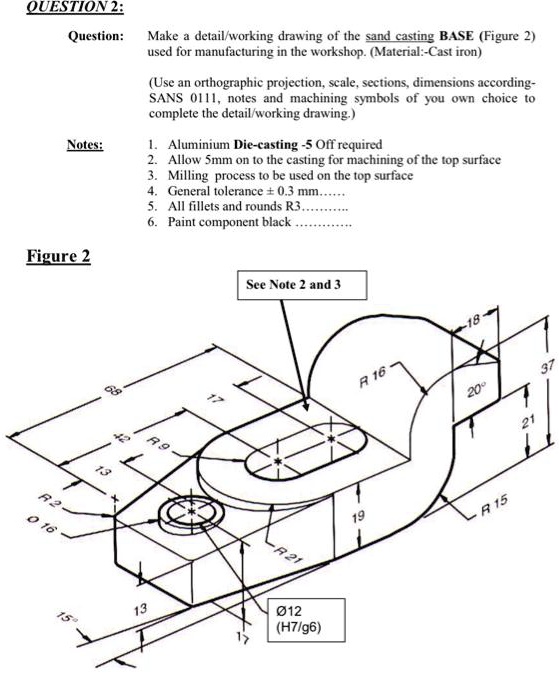

Figure 2
See Note 2 and 3

Show more…

QUESTION 2:
Question:
Make a detail/working drawing of the sand casting BASE (Figure 2)
used for manufacturing in the workshop. (Material:-Cast iron)
(Use an orthographic projection, scale, sections, dimensions according-
SANS 0111, notes and machining symbols of you own choice to
complete the detail/working drawing.)
Notes:
1. Aluminium Die-casting -5 Off required
2. Allow 5mm on to the casting for machining of the top surface
3. Milling process to be used on the top surface
4. General tolerance ± 0.3 mm.......
5. All fillets and rounds R3.
6. Paint component black
Figure 2
See Note 2 and 3
