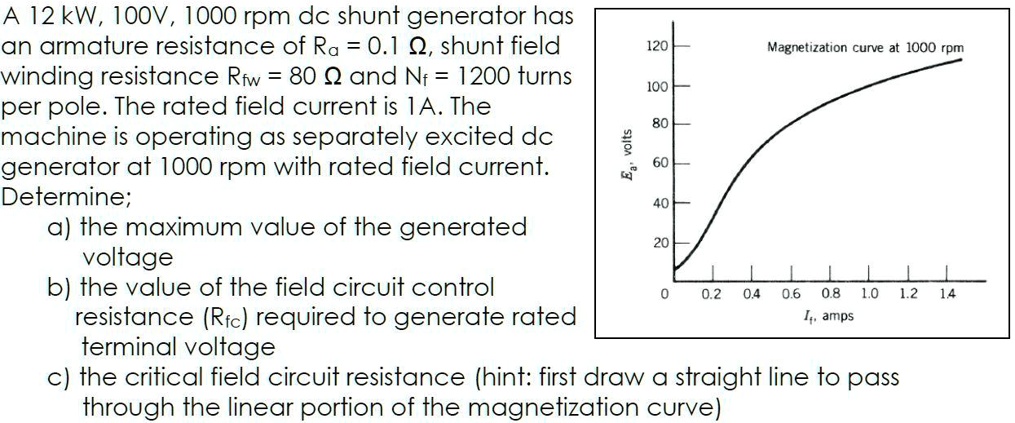

A 12 kW, 100V, 1000 rpm dc shunt generator has an armature resistance of Ra = 0.1 ?, shunt field winding resistance Rfw = 80 ? and Nf = 1200 turns per pole. The rated field current is 1A. The machine is operating as separately excited dc generator at 1000 rpm with rated field current. Determine; a) the maximum value of the generated voltage b) the value of the field circuit control resistance (Rfc) required to generate rated terminal voltage c) the critical field circuit resistance (hint: first draw a straight line to pass through the linear portion of the magnetization curve)
Added by Gema M.
Close
Step 1
1 Ω - Shunt field winding resistance (Rfw) = 80 Ω - Number of turns per pole (Nf) = 1200 - Rated field current (If) = 1 A We need to find: a) The maximum value of the generated voltage (Eg_max) b) The value of the field circuit control resistance (Rfc) required to Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 65 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.

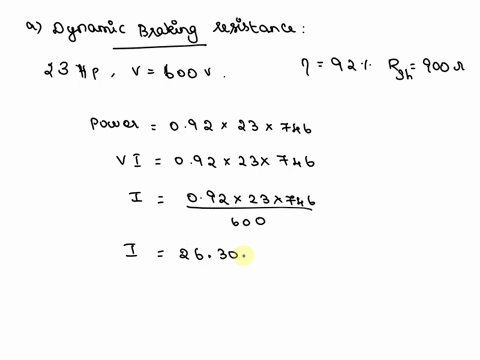

A 23 hp, dc shunt motor is running at 1000 rpm when the armature voltage is 600 V. the armature resistance of the motor is 0.8 Ω, and the field resistance is 900 Ω. The efficiency of the motor at full load is 92%. a) Calculate the value of the resistance of the dynamic braking at full load. The armature current should be limited to 150% of the rated value. b) If the motor operates in regenerative braking at a speed of 1100 rpm, calculate the line current. c) Design a circuit for countercurrent braking (by reversing the supply voltage) so that the line current will not exceed 120% of the rated value.
Supreeta N.
A 100-kW, 250-V, 400-A, long-shunt compound generator has an armature resistance (including brushes) of 0.025 Ω, a series-field resistance of 0.005 Ω, and the magnetization curve of Fig. 7.14. There are 1000 shunt-field turns per pole and three series-field turns per pole. The series field is connected in such a fashion that positive armature current produces direct-axis mmf which adds to that of the shunt field. Compute the terminal voltage at rated terminal current when the shunt-field current is 4.7 A and the speed is 1150 r/min. Neglect the effects of armature reaction. Practice Problem 7.3 Repeat Example 7.3 for a terminal current of 375 A and a speed of 1190 r/min.
Adi S.
