Three cases involving identical forces acting on identical sticks are shown in the figure. Compare the magnitudes of the torques about an axis through the center of the sticks. Torque(A) = Torque(B) > Torque(C) Torque(A) > Torque(B) > Torque(C) Torque(A) > Torque(B) = Torque(C) Case A Case B 30° Case C 30°
Added by Gadget G.
Close
Step 1
Therefore, the torque in case A is \(2FL\). ** Show more…
Show all steps
Your feedback will help us improve your experience
Kajal Raghubanshi and 83 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Please show in detail how to solve this including any math calculations. Thank you!
Prabhu R.

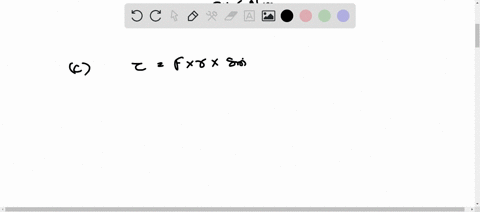

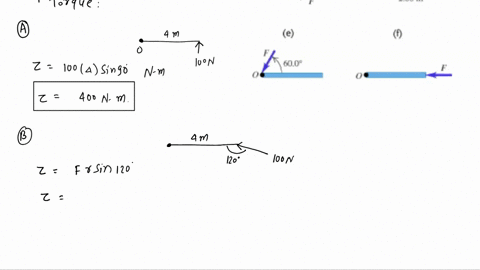

Problem 7. Calculate the torques in each of the following diagrams, assuming the length of the rod is 4 meters, and the applied force has a magnitude of 100 N in each case. In all six cases, the pivot is at the point O and the bar is 4 m long. Give your answers in units of N · m. A. Calculate the torque for diagram (a). B. Calculate the torque for diagram (b). C. Calculate the torque for diagram (c). D. Calculate the torque for diagram (d). E. Calculate the torque for diagram (e). F. Calculate the torque for diagram (f).
