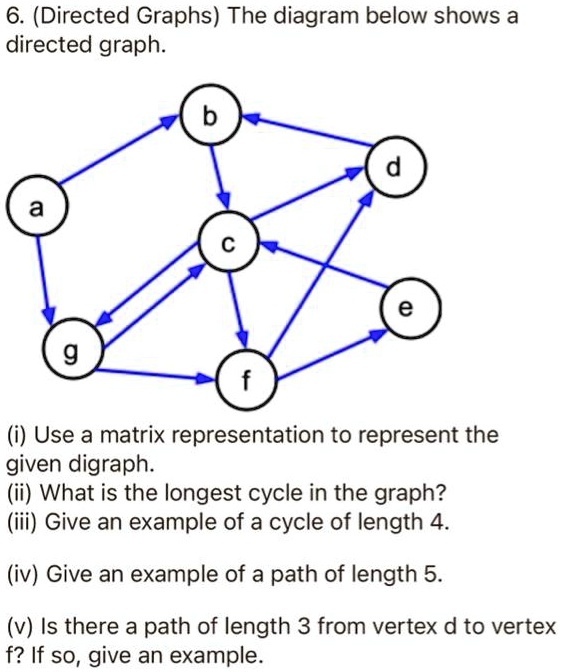

6. (Directed Graphs) The diagram below shows a directed graph. b d a c g f e (i) Use a matrix representation to represent the given digraph. (ii) What is the longest cycle in the graph? (iii) Give an example of a cycle of length 4. (iv) Give an example of a path of length 5. (v) Is there a path of length 3 from vertex d to vertex f? If so, give an example.
