Homework 11 < Question 1 (of 10) Consider the initial condition $i_o(0) = 2$ A in the given circuit, where $L = 4$ H. $4e^{-2}$ A $i_o(t)$ $5$ H $v_o$ References eBook & Resources Section Break 1. value: 10.00 points Determine the voltage $v_o(t)$ for $t > 0$. The voltage $v_o(t)$ is $= 2^t$ V. Hints References eBook & Resources Learning Objective: Understand how inductors behave when combined in parallel and in series.

          Homework 11
< Question 1 (of 10)

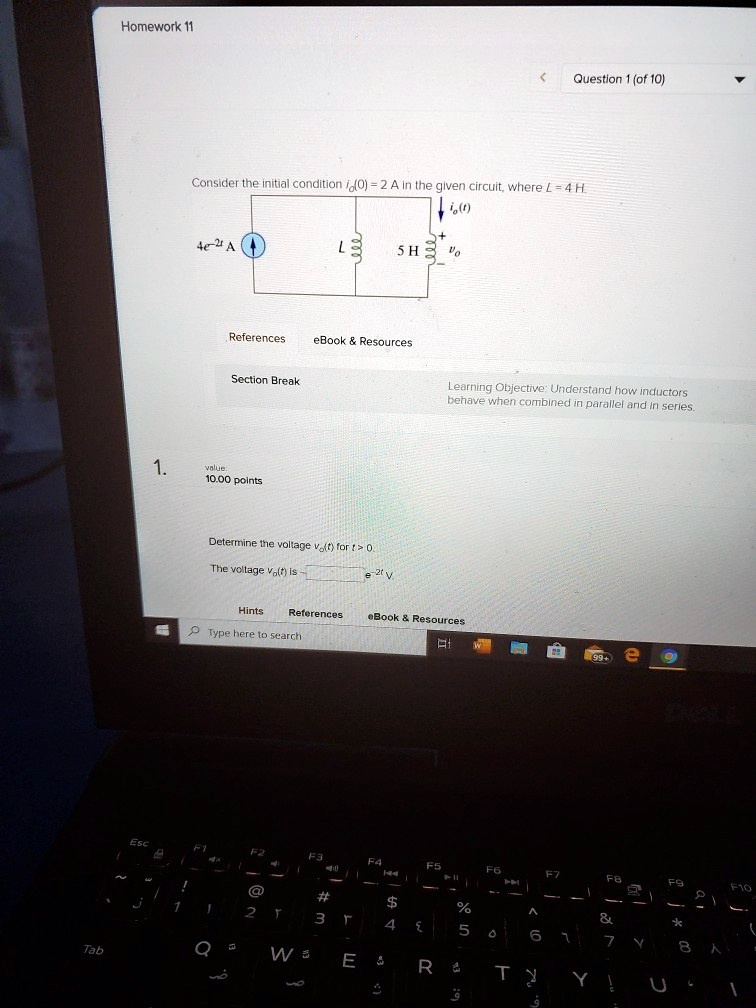

Consider the initial condition $i_o(0) = 2$ A in the given circuit, where $L = 4$ H.
$4e^{-2}$ A
$i_o(t)$
$5$ H
$v_o$
References eBook & Resources
Section Break
1. value:
10.00 points
Determine the voltage $v_o(t)$ for $t > 0$.
The voltage $v_o(t)$ is  $= 2^t$ V.
Hints References eBook & Resources
Learning Objective: Understand how inductors
behave when combined in parallel and in series.

Homework 11
< Question 1 (of 10)
Consider the initial condition io(0) = 2 A in the given circuit, where L = 4 H.
4e^-2 A
io(t)
5 H
vo
References eBook Resources
Section Break
1. value:
10.00 points
Determine the voltage vo(t) for t > 0.
The voltage vo(t) is = 2^t V.
Hints References eBook Resources
Learning Objective: Understand how inductors
behave when combined in parallel and in series.

Added by Ryan M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Rajendra Kumar

Step 1

Since the inductor is in series with the current source i1, the current flowing through the inductor will be the same as i1. Therefore, the current flowing through the inductor L is i1 = 4e-2A. Show more…

Show all steps
