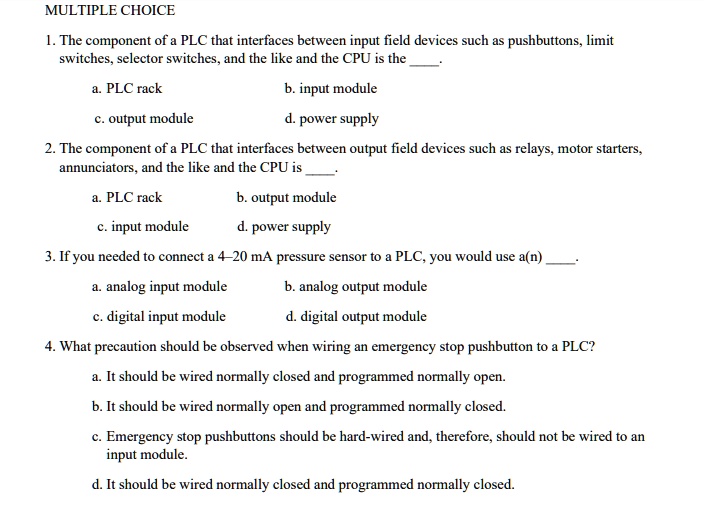

MULTIPLE CHOICE 1. The component of a PLC that interfaces between input field devices such as pushbuttons, limit switches, selector switches, and the like and the CPU is the ____. a. PLC rack b. input module c. output module d. power supply 2. The component of a PLC that interfaces between output field devices such as relays, motor starters, annunciators, and the like and the CPU is ____. a. PLC rack b. output module c. input module d. power supply 3. If you needed to connect a 4–20 mA pressure sensor to a PLC, you would use a(n) ____. a. analog input module b. analog output module c. digital input module d. digital output module 4. What precaution should be observed when wiring an emergency stop pushbutton to a PLC? a. It should be wired normally closed and programmed normally open. b. It should be wired normally open and programmed normally closed. c. Emergency stop pushbuttons should be hard-wired and, therefore, should not be wired to an input module. d. It should be wired normally closed and programmed normally closed.
Added by Dolores S.
Close
Step 1
"The component of a PLC that interfaces between input field devices such as pushbuttons, limit switches, selector switches, and the like and the CPU is the ____." Step 2: Identify the correct answer from the options provided. a. PLC rack b. input module c. output Show more…
Show all steps
