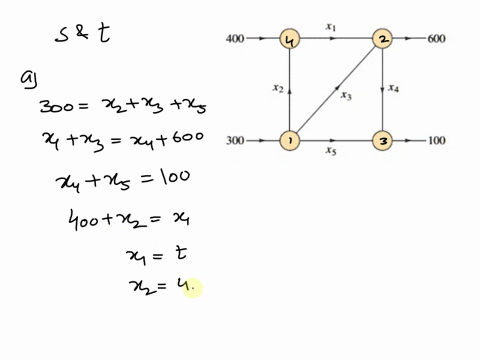

Please work the following problem in your own writing, and submit the solution as a pdf to Canvas: Construct a system of linear equations that describes the traffic flow in the road network in the figure here. All streets are one-way streets in the directions indicated. The units are vehicles per hour. Give two distinct possible flows of traffic. What is the minimum
possible flow that can be expected along the branch AB?
