Please WRITE a Python script.

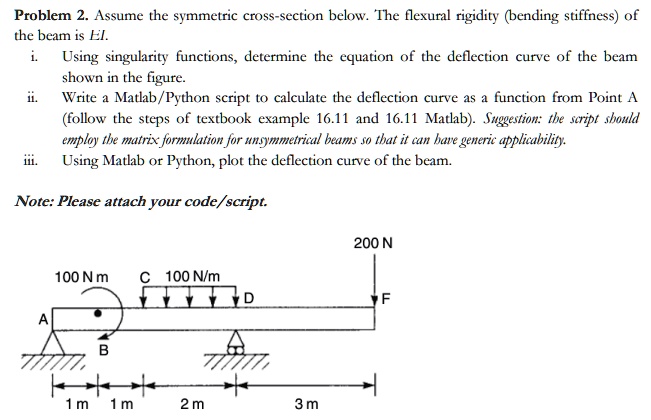

Problem 2: Assume the symmetric cross-section below. The flexural rigidity (bending stiffness) of the beam is El.
i.
Using singularity functions, determine the equation of the deflection curve of the beam shown in the figure. Write a Matlab/Python script to calculate the deflection curve as a function from Point A following the steps of textbook example 16.11 and 16.11 Matlab Suggestion. The script should employ the matrix formulation for unsymmetrical beams so that it can have generic applicability. Using Matlab or Python, plot the deflection curve of the beam.
ii.
iii.
Note: Please attach your code/script.
200 N
100 Nm
c = 100 N/m
B
1 m
1 m
2 m
3 m
