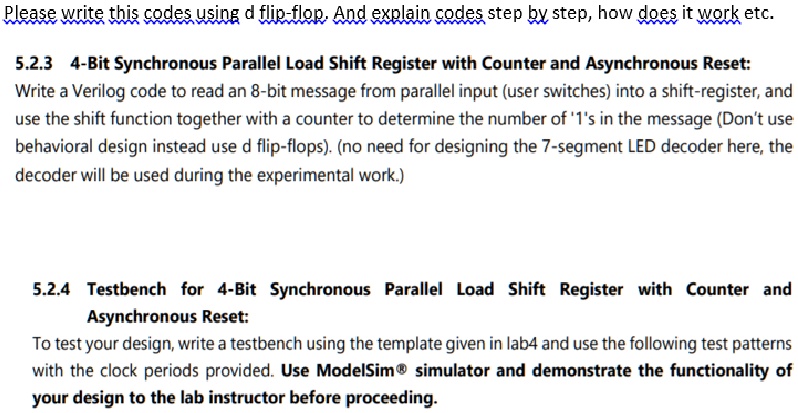

5.2.3 4-Bit Synchronous Parallel Load Shift Register with Counter and Asynchronous Reset: Write a Verilog code to read an 8-bit message from parallel input (user switches) into a shift-register, and use the shift function together with a counter to determine the number of '1's in the message (Don't use behavioral design instead use d flip-flops). (no need for designing the 7-segment LED decoder here, the decoder will be used during the experimental work.) 5.2.4 Testbench for 4-Bit Synchronous Parallel Load Shift Register with Counter and Asynchronous Reset: To test your design, write a testbench using the template given in lab4 and use the following test patterns with the clock periods provided. Use ModelSim® simulator and demonstrate the functionality of your design to the lab instructor before proceeding.
Added by Aaron L.
Close
Step 1
A D flip-flop is a type of flip-flop that takes an input and gives an output that is the same as the input at the next clock cycle. Here is a simple Verilog code for a 4-bit shift register: ```verilog module shift_register ( input wire clk, input wire Show more…
Show all steps
