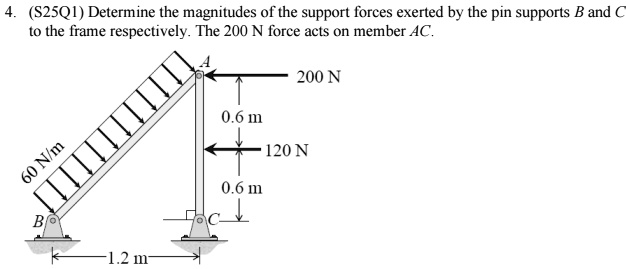

4. (S25Q1) Determine the magnitudes of the support forces exerted by the pin supports B and C to the frame respectively. The 200 N force acts on member AC. 60 N/m B 1.2 m 200 N 0.6 m 120 N 0.6 m
Added by Ashlee H.
Close
Step 1
Determine the magnitude of the support force exerted by the pin supports B and C to the frame respectively. The 200 N force acts on member AC. Show more…
