Practice problem 2 The truss is supported by a pin at A and a roller at B. Draw the FBD of the truss and calculate the support reactions. How many equations of equilibrium are there in 2D and 3D.

          Practice problem 2
The truss is supported by a pin at A and a roller at B. Draw the FBD of the truss and calculate the support reactions. How many equations of equilibrium are there in 2D and 3D.

Added by Tonya F.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Jaya M

Step 1

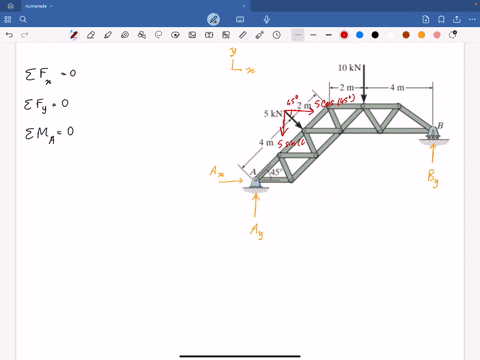

- At pin A, there are two reaction forces: \( A_x \) (horizontal) and \( A_y \) (vertical). - At roller B, there is one reaction force: \( B_y \) (vertical). - Include the external forces: a 5 kN force at 45° and a 10 kN vertical force. Show more…
