PRACTICE QUESTION 1 Consider the frame system below. Determine the resultant moment about point A. Neglect the thickness of the beam. 3 m 60° -1 m -1 m -1 m 200 N 200 N 200 N 30° 400 N |?M<sub>A</sub>| = 3900 Nm
Added by Lori V.
Close
Step 1
This can be calculated using the formula: Moment = Force x Distance Moment = 200N x 3m Moment = 600 Nm Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Beam: Point C is located at the middle of the uniform beam. At the end, a force F of 87 N is applied at point P on the beam and θ is 18 degrees. The magnitude of the torque about some pivot point is determined by |τ| = rF sinθ.
Nishant K.

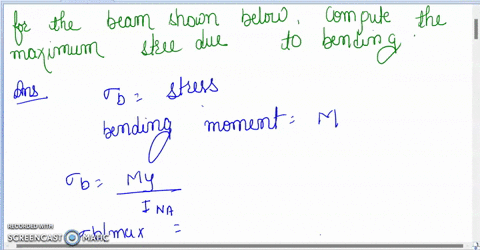

For the beam shown below, compute the maximum stress due to bending. The cross section of the beam is a rectangle 100 mm high and 25 mm wide. The load at the middle of the beam is 1500 N and the length of the beam is 3.40 m. 1500 N 1.7 m 3.4 m R1 = 750 N R2 = 750 N Beam cross section 750 Shearing force V(N) c = 50 mm Centroidal Axis c = 50 mm -750 h = 100 mm 1275 N·m Bending moment M(N·m) b = 25 mm
Shaiju T.

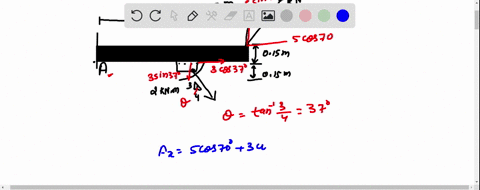

For the loaded beam shown, determine the resultant force and resultant moment at point A located at the bottom of the beam?
Rashmi P.
