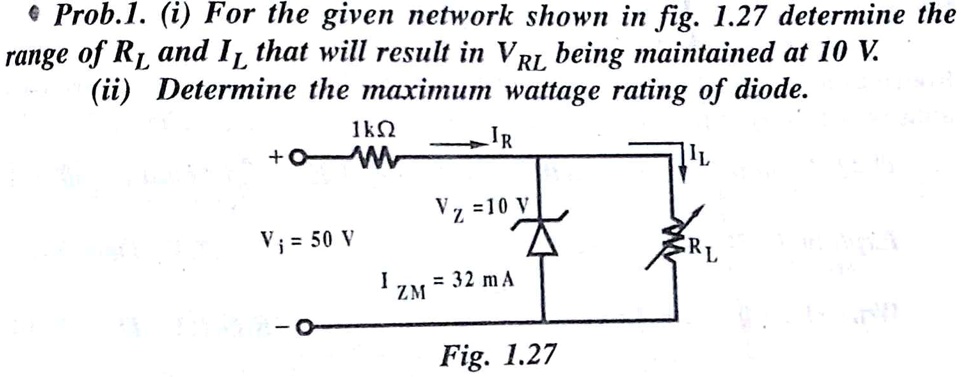

Prob.1. (i) For the given network shown in fig. 1.27 determine the range of RL and IL that will result in VRL being maintained at 10 V. (ii) Determine the maximum wattage rating of diode. 1k?, IR, IL, Vi = 50 V, VZ = 10 V, RL, IZM = 32 mA, Fig. 1.27
Added by Dennis C.
Close
Step 1
(i) Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Q9: Determine the range of Vi that will maintain VL=8V and does not exceed the maximum power rating of the diode (5 Marks) Rs = 91 Ή Vz = 8V Pzmax = 400mW RL = 0.22k Ή
Sri K.
Zener Diodes 4. Determine VL: IL: Iz; and IR for the network of Fig 2.186 if RL = 180 Ω. b. Repeat part (a) if RL = 470 Ω. c. Determine the value of RL that will establish maximum power conditions for the Zener diode. d. Determine the minimum value of RL to ensure that the Zener diode is in the ON state. 220 Ω 20 V Vz = 10 V Pzmax = 400 mW
In the voltage regulator circuit shown below, the power rating of the Zener diode is 400 mW. The value of R will establish the maximum power in that Zener diode as 2220 Ω. V = 10V, R = 0.20 Ω.
Pritesh R.
