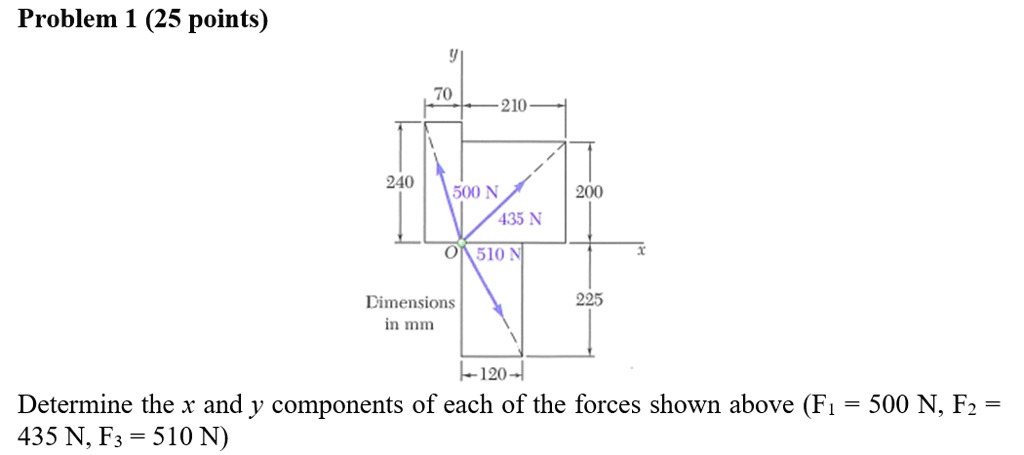

Problem 1 (25 points) 70 210 240 500 N 435 N 200 510 N Dimensions in mm 225 120 Determine the x and y components of each of the forces shown above (F1 = 500 N, F2 = 435 N, F3 = 510 N)

          Problem 1 (25 points)
70
210
240
500 N
435 N
200
510 N
Dimensions in mm
225
120
Determine the x and y components of each of the forces shown above (F1 = 500 N, F2 = 435 N, F3 = 510 N)

Added by Ana S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

10/08/2023

Step 1

For F1 (500 N), the angle can be found using the tangent function: tan(θ1) = 120 / 225 θ1 = arctan(120 / 225) ≈ 28.07° For F2 (435 N), the angle can be found using the tangent function: tan(θ2) = 200 / 240 θ2 = arctan(200 / 240) ≈ 39.81° For F3 (510 N), the Show more…
