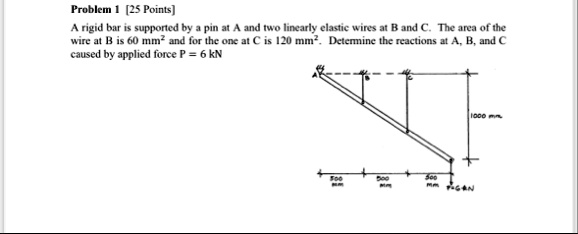

          Problem 1 [25 Points]
A rigid bar is supported by a pin at A and two linearly elastic wires at B and C. The area of the
wire at B is 60 mm$^2$ and for the one at C is 120 mm$^2$. Determine the reactions at A, B, and C
caused by applied force P = 6 kN
1000 mm
500
500
500
mm P=6 kN

problem 1 25 points a rigid bar is supported by a pin at a and two linearly elastic wires at b and c the area of the wire at b is 60 mm2 and for the one at c is 120 mm2 determine the reactio 45778

Added by Sebastian G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supratim Pal

10/30/2024

Step 1

* Two linearly elastic wires at B and C. * Area of wire at B ($A_B$) = 60 mm$^2$. * Area of wire at C ($A_C$) = 120 mm$^2$. * Applied force P = 6 kN. * Distances from the diagram: * Horizontal distance from A to B = 500 mm. * Horizontal Show more…
