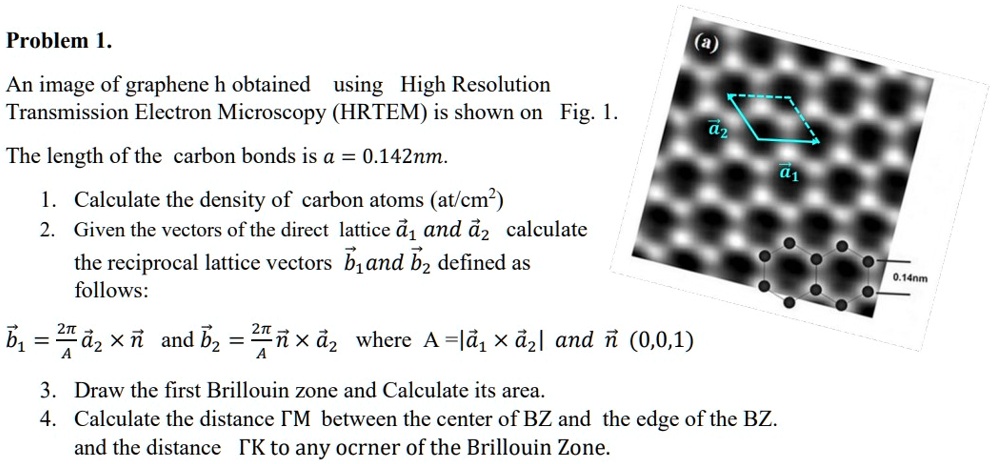

Problem 1. An image of graphene h obtained using High Resolution Transmission Electron Microscopy (HRTEM) is shown on Fig. 1. The length of the carbon bonds is a = 0.142nm. 1. Calculate the density of carbon atoms (at/cm²) 2. Given the vectors of the direct lattice $\vec{a_1}$ and $\vec{a_2}$ calculate the reciprocal lattice vectors $\vec{b_1}$ and $\vec{b_2}$ defined as follows: $\vec{b_1} = \frac{2\pi}{A} \vec{a_2} \times \vec{n}$ and $\vec{b_2} = \frac{2\pi}{A} \vec{n} \times \vec{a_2}$ where A = $|\vec{a_1} \times \vec{a_2}|$ and $\vec{n}$ (0,0,1) 3. Draw the first Brillouin zone and Calculate its area. 4. Calculate the distance ?M between the center of BZ and the edge of the BZ. and the distance ?K to any ocrner of the Brillouin Zone.

          Problem 1.
An image of graphene h obtained using High Resolution
Transmission Electron Microscopy (HRTEM) is shown on Fig. 1.
The length of the carbon bonds is a = 0.142nm.
1. Calculate the density of carbon atoms (at/cm²)
2. Given the vectors of the direct lattice $\vec{a_1}$ and $\vec{a_2}$ calculate
the reciprocal lattice vectors $\vec{b_1}$ and $\vec{b_2}$ defined as
follows:
$\vec{b_1} = \frac{2\pi}{A} \vec{a_2} \times \vec{n}$ and $\vec{b_2} = \frac{2\pi}{A} \vec{n} \times \vec{a_2}$ where A = $|\vec{a_1} \times \vec{a_2}|$ and $\vec{n}$ (0,0,1)
3. Draw the first Brillouin zone and Calculate its area.
4. Calculate the distance ?M between the center of BZ and the edge of the BZ.
and the distance ?K to any ocrner of the Brillouin Zone.

Show more…

Problem 1.
An image of graphene h obtained using High Resolution
Transmission Electron Microscopy (HRTEM) is shown on Fig. 1.
The length of the carbon bonds is a = 0.142nm.
1. Calculate the density of carbon atoms (at/cm²)
2. Given the vectors of the direct lattice a⃗1⃗ and a⃗2⃗ calculate
the reciprocal lattice vectors b⃗1⃗ and b⃗2⃗ defined as
follows:
b⃗1⃗ = (2π)/(A)a⃗2⃗×n⃗ and b⃗2⃗ = (2π)/(A)n⃗×a⃗2⃗ where A = |a⃗1⃗×a⃗2⃗| and n⃗ (0,0,1)
3. Draw the first Brillouin zone and Calculate its area.
4. Calculate the distance ?M between the center of BZ and the edge of the BZ.
and the distance ?K to any ocrner of the Brillouin Zone.

Added by Lisa W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Susan Hallstrom

12/26/2023

Step 1

The area of the unit cell can be calculated using the formula A = |vec(a)_(1) × vec(a)_(2)|. Once we have the area of the unit cell, we can calculate the density of carbon atoms by dividing the number of carbon atoms in the unit cell by the area of the unit cell. Show more…

Show all steps

lock

Thanks for your feedback!

Problem 1: An image of graphene obtained using High Resolution Transmission Electron Microscopy (HRTEM) is shown in Fig. 1. The length of the carbon bonds is a = 0.142 nm. 1. Calculate the density of carbon atoms (atoms/cm^2). 2. Given the vectors of the direct lattice vec(a)_(1) and vec(a)_(2), calculate the reciprocal lattice vectors vec(b)_(1) and vec(b)_(2) defined as follows: vec(b)_(1) = (2π)/(A) vec(a)_(2) × vec(n) and vec(b)_(2) = (2π)/(A) vec(n) × vec(a)_(2) where A = |vec(a)_(1) × vec(a)_(2)| and vec(n) = (0,0,1). 3. Draw the first Brillouin zone and calculate its area. 4. Calculate the distance ΓM between the center of BZ and the edge of the BZ, and the distance ΓK to any corner of the Brillouin Zone.
