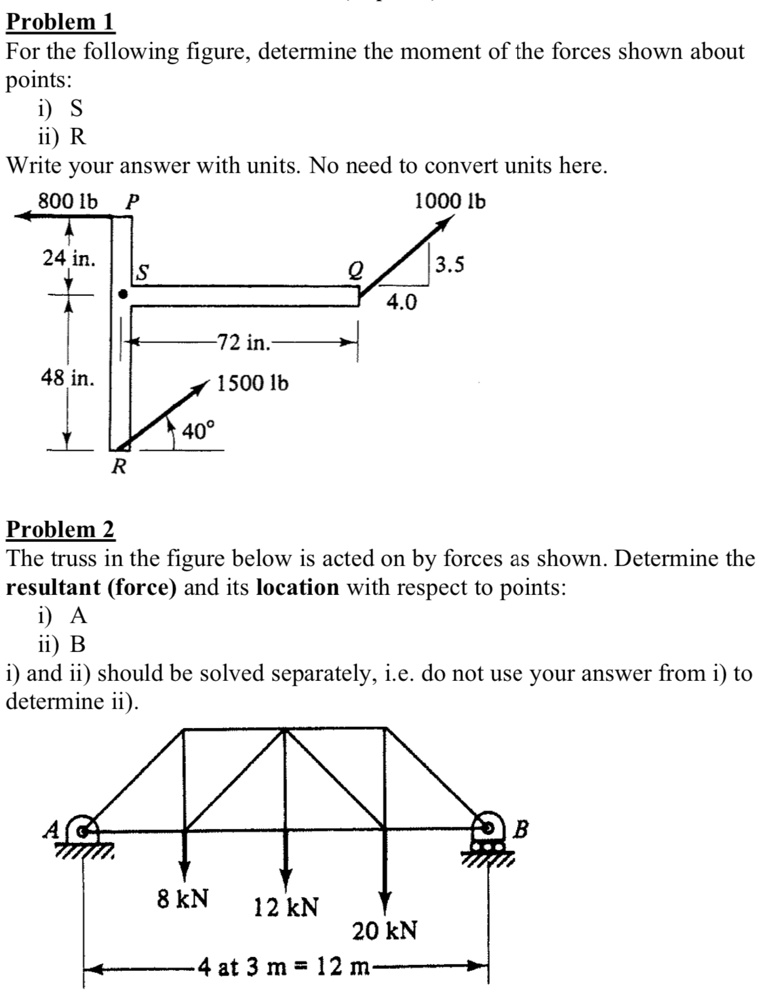

Problem 1 For the following figure, determine the moment of the forces shown about points: i) S ii) R Write your answer with units. No need to convert units here. Problem 2 The truss in the figure below is acted on by forces as shown. Determine the resultant (force) and its location with respect to points: i) A ii) B i) and ii) should be solved separately, i.e. do not use your answer from i) to determine ii). Problem 1 For the following figure, determine the moment of the forces shown about points: i) s ii) R Write your answer with units. No need to convert units here. 800 1b 1000 lb 24 in. Q 3.5 4.0 S 72 in. 48 in. 1500 1b 40 R Problem 2 The truss in the figure below is acted on by forces as shown. Determine the resultant (force) and its location with respect to points: i) A ii) B i) and ii) should be solved separately, i.e. do not use your answer from i) to determine ii). 8 kN 12 kN 20 kN 4 at 3 m = 12 m

          Problem 1
For the following figure, determine the moment of the forces shown about points:
i) S
ii) R
Write your answer with units. No need to convert units here.
Problem 2
The truss in the figure below is acted on by forces as shown. Determine the resultant (force) and its location with respect to points:
i) A
ii) B
i) and ii) should be solved separately, i.e. do not use your answer from i) to determine ii).
Problem 1 For the following figure, determine the moment of the forces shown about points: i) s ii) R Write your answer with units. No need to convert units here. 800 1b 1000 lb
24 in.
Q 3.5 4.0
S
72 in.
48 in.
1500 1b
40
R
Problem 2 The truss in the figure below is acted on by forces as shown. Determine the resultant (force) and its location with respect to points: i) A ii) B i) and ii) should be solved separately, i.e. do not use your answer from i) to determine ii).
8 kN
12 kN
20 kN 4 at 3 m = 12 m

problem 1 for the following figure determine the moment of the forces shown about points i s ii r write your answer with units no need to convert units here problem 2 the truss in the figure 04174
