Problem 1: Given: A stake is pulled out with two ropes shown [ alpha=30^{circ} ] Resultant is vertical Find: Magnitude of resultant (solve graphically and analytically) ( 120 mathrm{lbs} )
Added by Sarai
Close
Step 1
**Graphical Solution:** Show more…
Show all steps
Your feedback will help us improve your experience
Khushbu Rani and 64 other Algebra and Trigonometry educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

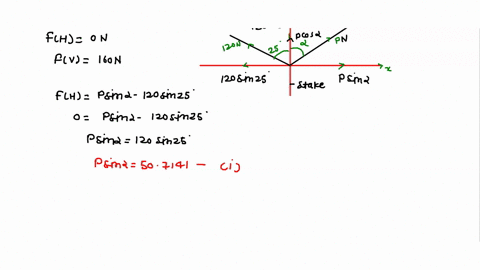

Problem 1 - A stake is being pulled out of the ground by means of two ropes as shown. Knowing that the tension in one rope is 120 N, determine by trigonometry the magnitude and direction of the force P so that the resultant is a vertical force of 160 N. Answer: P = 72.1 N and α = 44.7°
Pravin N.

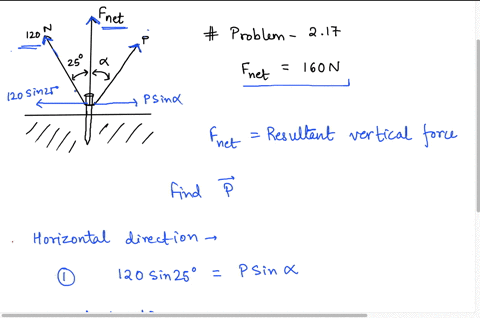

PROBLEM 2.17 For the stake of Prob. 2.5, knowing that the tension in one rope is 120 N, determine by trigonometry the magnitude and direction of the force P so that the resultant is a vertical force of 160 N. PROBLEM 2.5 A stake is being pulled out of the ground by means of two ropes as shown. Knowing that α = 30°, determine by trigonometry (a) the magnitude of the force P so that the resultant force exerted on the stake is vertical, (b) the corresponding magnitude of the resultant.
Nibaal K.
A stake is being pulled out of the ground by means of two ropes as shown. Knowing that $\alpha=30^{\circ},$ determine by trigonometry $(a)$ the magnitude of the force $\mathbf{P}$ so that the resultant force exerted on the stake is vertical, ( $b$ ) the corresponding magnitude of the resultant.
Statics of Particles
Addition of Planar Forces
