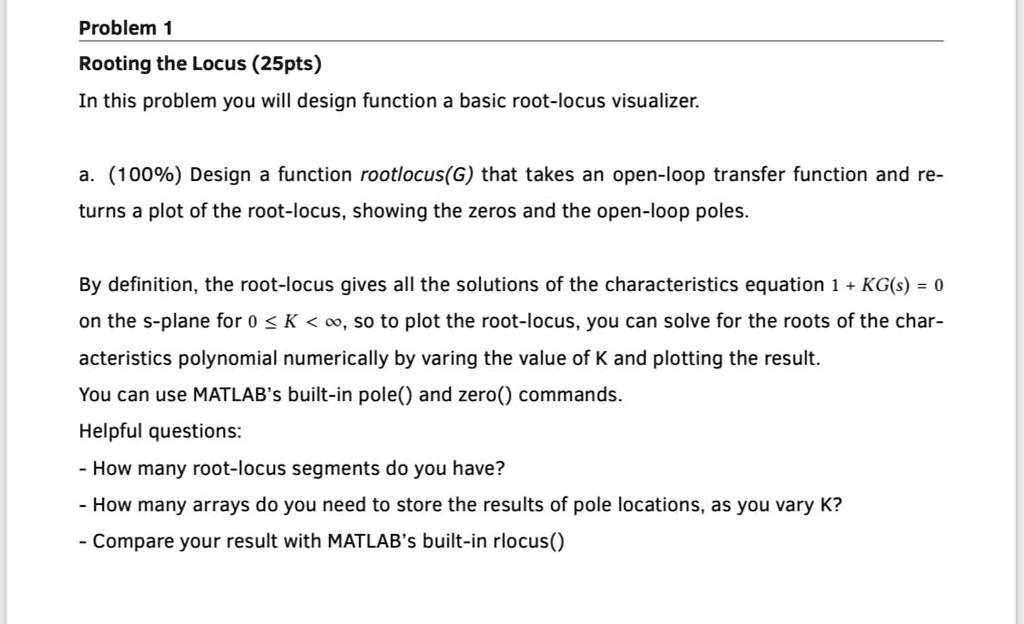

Problem 1 Rooting the Locus (25pts) In this problem you will design function a basic root-locus visualizer. a. (100%) Design a function rootlocus(G) that takes an open-loop transfer function and re- turns a plot of the root-locus, showing the zeros and the open-loop poles. By definition, the root-locus gives all the solutions of the characteristics equation $1 + KG(s) = 0$ on the s-plane for $0 \le K < \infty$, so to plot the root-locus, you can solve for the roots of the char- acteristics polynomial numerically by varing the value of K and plotting the result. You can use MATLAB's built-in pole() and zero() commands. Helpful questions: - How many root-locus segments do you have? - How many arrays do you need to store the results of pole locations, as you vary K? - Compare your result with MATLAB's built-in rlocus()
