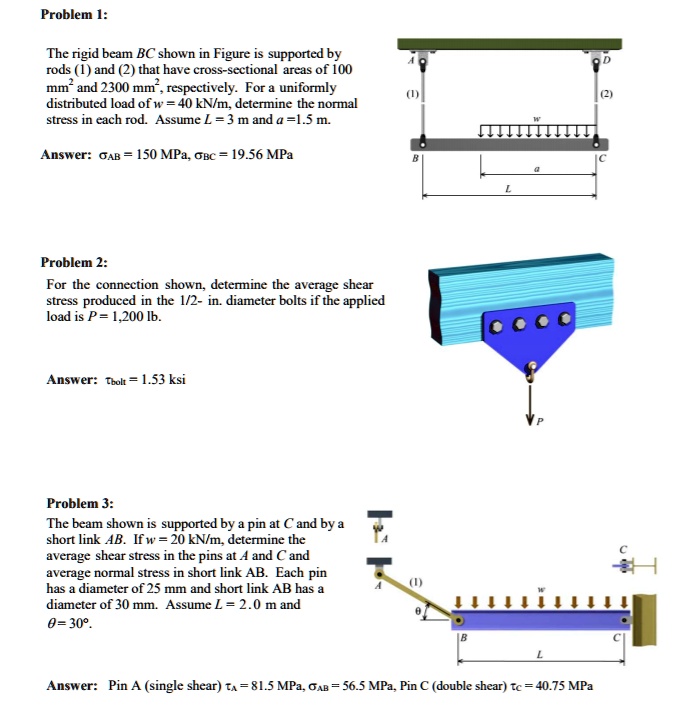

Problem 1: The rigid beam BC shown in Figure is supported by rods (1) and (2) that have cross-sectional areas of 100 mm² and 2300 mm², respectively. For a uniformly distributed load of w = 40 kN/m, determine the normal stress in each rod. Assume L = 3 m and a =1.5 m. Answer: $sigma_{AB}$ = 150 MPa, $sigma_{BC}$ = 19.56 MPa Problem 2: For the connection shown, determine the average shear stress produced in the 1/2- in. diameter bolts if the applied load is P = 1,200 lb. Answer: $ au_{bolt}$ = 1.53 ksi Problem 3: The beam shown is supported by a pin at C and by a short link AB. If w = 20 kN/m, determine the average shear stress in the pins at A and C and average normal stress in short link AB. Each pin has a diameter of 25 mm and short link AB has a diameter of 30 mm. Assume L = 2.0 m and $ heta$=30°. Answer: Pin A (single shear) $ au_A$ = 81.5 MPa, $sigma_{AB}$ = 56.5 MPa, Pin C (double shear) $ au_C$ = 40.75 MPa
Added by Zachary J.
Close
Step 1
- Total resultant W = w · a = 40 kN/m · 1.5 m = 60 kN, located at a/2 = 0.75 m from the left end. - Take moments about left support: R_right · L = W · 0.75 ⇒ R_right = (60 kN · 0.75 m) / 3.0 m = 15 kN. - R_left = W − R_right = 60 − 15 = 45 kN. Show more…
Show all steps
Your feedback will help us improve your experience
Melissa Walsh and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem C-2 [Average Normal and Average Shear Stresses] As shown in the figure, member AB and member BC are connected through a pin joint at B, i.e., double shear. The other ends of the members AB and BC are connected to the walls at points A and C, i.e., single shear, respectively. There is a uniform distributed load of 2 kip/ft applied to the member AB in the transverse direction achieving equilibrium. Given the cross section of BC is rectangular in shape, with width w = 1.5 in. and thickness t = 0.25 in. All the pins at A, B, and C have the same diameters d = 1 in. The length of BC lBC = 6 ft. The length of AB lAB = 8 ft. Determine the following: (1) The average normal stress ̃σa-a and average shear stress ̃τa-a in member BC at the cross-section a-a; (2) The average shear stress ̃τA in the pin at point A (assume simple shear)
Adi S.

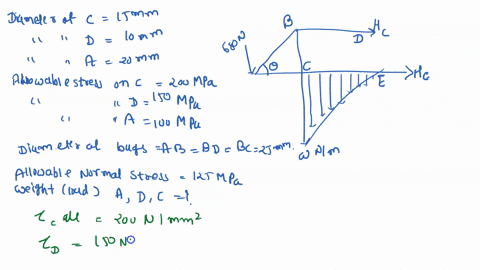

For the system shown in Figure (1), the bolt in C is subjected to a single shear and all other bolts are double shear. The diameter of bolt at C is 15 mm, diameter of bolt at D is 10mm and diameter of bolt A is 20mm. The allowable shear stress of bolt C is 200 MPa, allowable shear stress of bolt D is 150 MPa and allowable shear stress of bolt A is 100 .MPa If the diameter of bars AB, BD and BC is 25 mm and allowable normal stress is 125 MPa determine the safe value of the load (w) that can be applied based on the allowable shear stress of bolts at A,D, C and allowable .normal stress of bars AB, BD, BC
Sri K.
