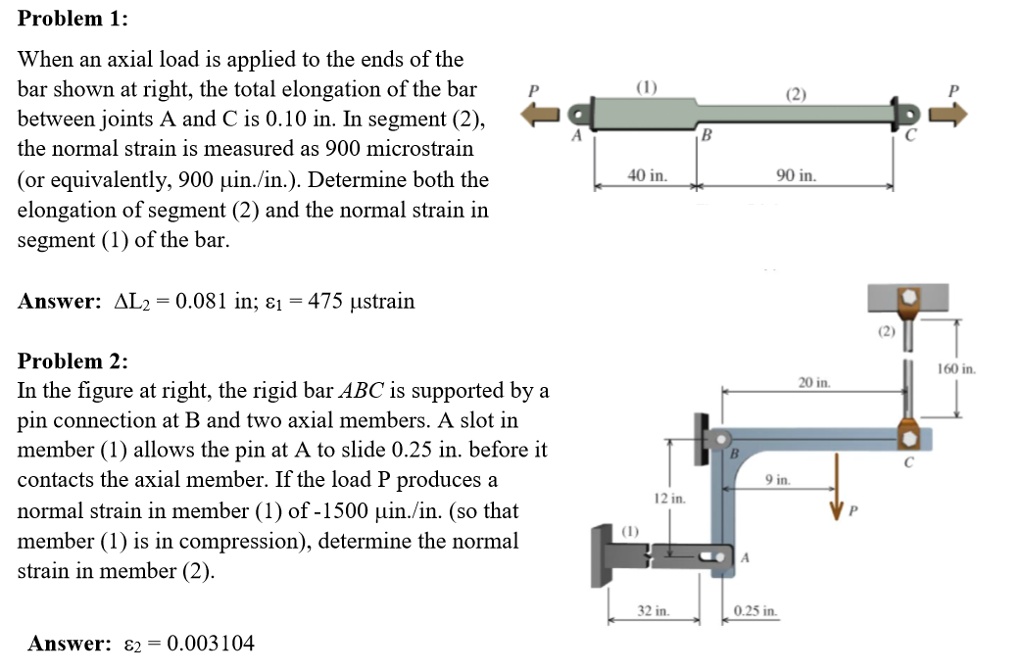

Problem 1: When an axial load is applied to the ends of the bar shown at right, the total elongation of the bar between joints A and C is 0.10 in. In segment (2), the normal strain is measured as 900 microstrain (or equivalently, 900 ?in./in.). Determine both the elongation of segment (2) and the normal strain in segment (1) of the bar. Answer: ?L2 = 0.081 in; ?1 = 475 ?strain Problem 2: In the figure at right, the rigid bar ABC is supported by a pin connection at B and two axial members. A slot in member (1) allows the pin at A to slide 0.25 in. before it contacts the axial member. If the load P produces a normal strain in member (1) of -1500 ?in./in. (so that member (1) is in compression), determine the normal strain in member (2). Answer: ?2 = 0.003104
Added by Michelle P.
Close
Step 1
10 in. In segment (2) the normal strain is measured as 900 microstrain (2) (or equivalently, 900 uin./in.). Determine both the elongation of segment(2 and the normal strain in 40 in 90 in. segment (1) of the bar. The elongation of segment (2) is 0.081 in., and Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 58 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

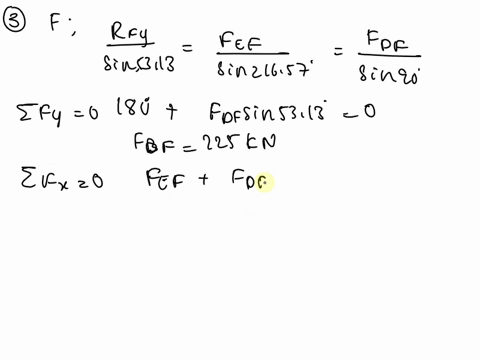

A pin-jointed structure is supported and loaded as shown in Figure 1. The structure is constructed from tubular steel bars of hollow circular cross-section whose external diameter is 50 mm and whose wall thickness is 5 mm. The Young’s modulus for the material is 200 GPa. (a). Determine the magnitudes and directions of the reactions at A and F. (b). Perform a simple test to determine whether or not the structure is statically determinate. (c). Calculate the axial force in bars EF, DF, CE, ED, CD and BD, indicating whether the bars are in tension or compression. (d). Derive an expression for the stiffness of an elastic bar subjected to axial loading conditions. (e). Calculate the stiffness and change in length of bar EF. (f). Calculate the effective slenderness ratio of bar DF and hence determine if the Euler buckling formula is valid for this bar. (g). Use the Euler buckling formula to determine whether or not buckling will occur in bar DF.
Madhur L.

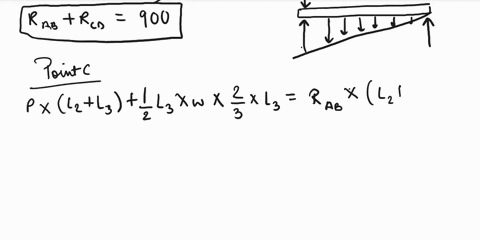

A system has been designed that is modeled as shown to the right. It consists of two solid 2014-T6 aluminum rods AB and CD with the given dimensions and 2 rigid plates, AC and BD. If the assembly is subjected to the external loading shown, determine the deformation of both rods AB (̈́ᴡ) and CD (̈́ᴄᴰ). Also determine the new diameter of rod CD, d'ᴄᴰ, after loading. Use the following parameters: dᴡᴠ = 0.5 in, dᴄᴰ = 0.3 in, L₁ = 20 in, L₂ = 10 in, L₃ = 40 in, P = 500 lb, and w = 20 lb/in.
Adi S.
An axial pull of 40 kN is acting on a stepped bar consisting of three sections of length 30 cm, 25 cm, and 20 cm, and of diameter 2 cm, 4 cm, and 5 cm respectively. If E = 2.1 × 10^5 N/mm^2, determine a) stresses in each section and b) total elongation of the bar. A brass bar having cross-sectional area of 1000 mm^2 is subjected to axial forces as shown below. Find the total elongation of the bar. Modulus of elasticity of brass = 100 GPa.
Sri K.
