Question

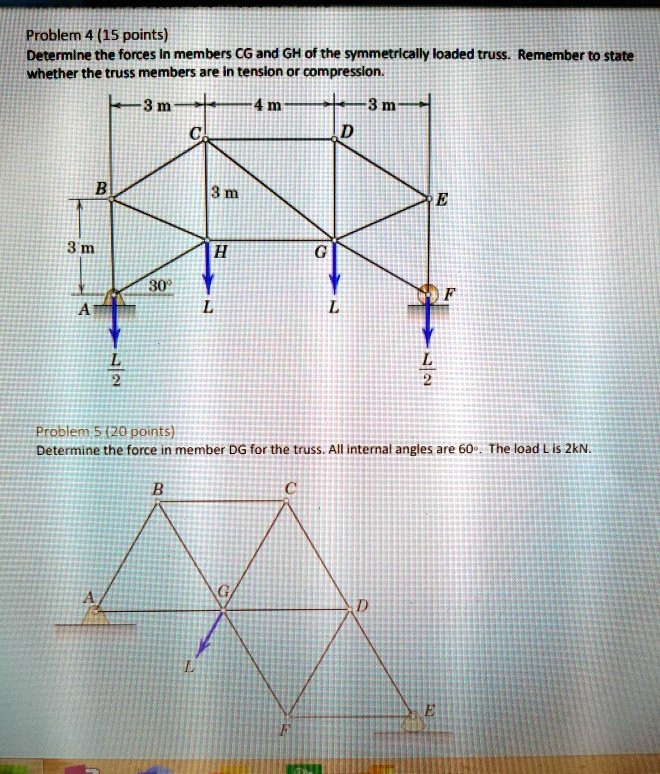

Problem 4 (15 points) Determine the forces in members CG and GH of the symmetrically loaded truss. Remember to state whether the truss members are in tension or compression. Problem 5 (20 points) Determine the force in member DG for the truss. All internal angles are 60°. The load L is 2kN.

          Problem 4 (15 points)
Determine the forces in members CG and GH of the symmetrically loaded truss. Remember to state whether the truss members are in tension or compression.
Problem 5 (20 points)
Determine the force in member DG for the truss. All internal angles are 60°. The load L is 2kN.

Problem 4 (15 points)
Determine the forces in members CG and GH of the symmetrically loaded truss. Remember to state whether the truss members are in tension or compression.
Problem 5 (20 points)
Determine the force in member DG for the truss. All internal angles are 60°. The load L is 2kN.

Added by Timothy P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

04/30/2022

Step 1

Since the truss is symmetrically loaded, the reactions at the supports (A and I) will be equal and each will carry half of the total load. The total load is 2 kN, so each reaction will be 1 kN. Show more…
