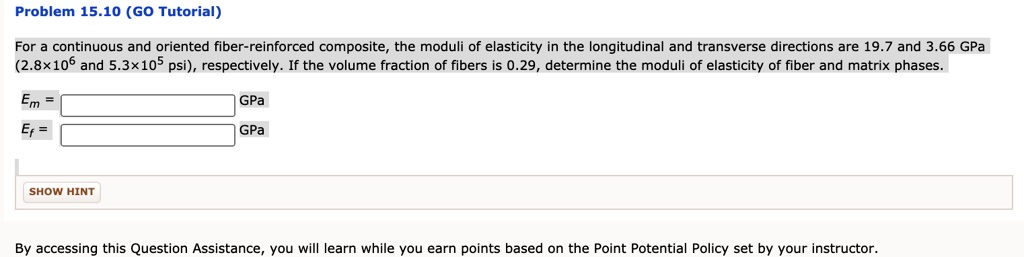

Problem 15.10 (GO Tutorial) For a continuous and oriented fiber-reinforced composite, the moduli of elasticity in the longitudinal and transverse directions are 19.7 and 3.66 GPa (2.8×10? and 5.3×10? psi), respectively. If the volume fraction of fibers is 0.29, determine the moduli of elasticity of fiber and matrix phases. E? = [ ] GPa E? = [ ] GPa
Added by James L.
Close
Step 1
The problem asks us to find the moduli of elasticity of both the fiber (Ef) and the matrix (Em) phases in a fiber-reinforced composite material. We are given the moduli of elasticity in the longitudinal (E1 = 19.7 GPa) and transverse (E2 = 3.66 GPa) directions, as Show more…
