Problem 17 Consider the following current loops, which have the same current $I$ in every loop. Rank the following cases based on the magnitude of the total magnetic field at the center of the loops, greatest first a) 5, 1 = 3, 2, 4 b) 2, 4, 5, 1 = 3 c) 3 = 1, 4, 5 = 2 d) 4, 2, 3 = 1, 5 e) 1 = 3, 5, 4, 2

          Problem 17

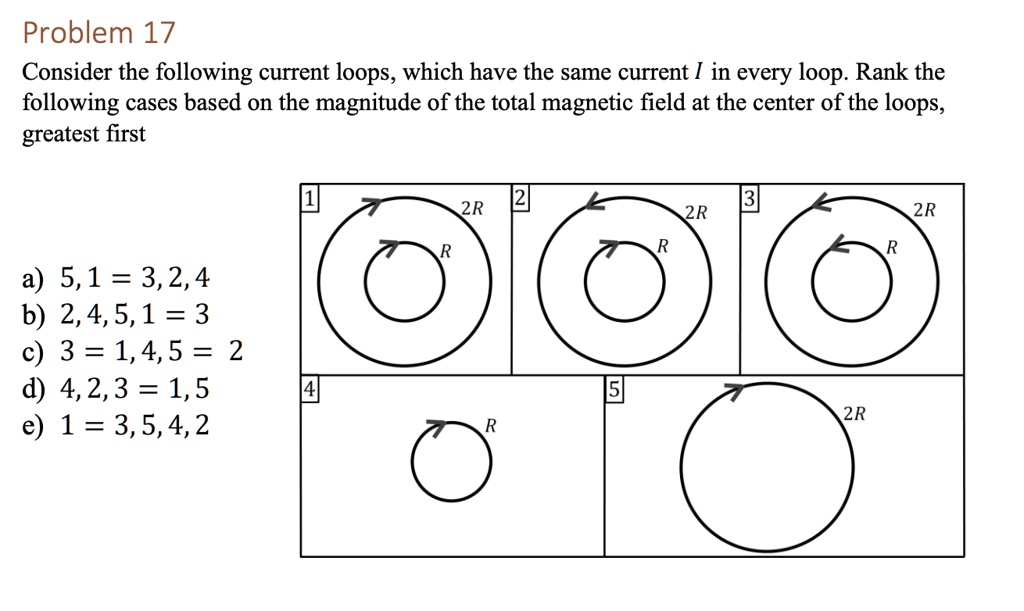

Consider the following current loops, which have the same current $I$ in every loop. Rank the
following cases based on the magnitude of the total magnetic field at the center of the loops,
greatest first
a) 5, 1 = 3, 2, 4
b) 2, 4, 5, 1 = 3
c) 3 = 1, 4, 5 = 2
d) 4, 2, 3 = 1, 5
e) 1 = 3, 5, 4, 2

Problem 17
Consider the following current loops, which have the same current I in every loop. Rank the
following cases based on the magnitude of the total magnetic field at the center of the loops,
greatest first
a) 5, 1 = 3, 2, 4
b) 2, 4, 5, 1 = 3
c) 3 = 1, 4, 5 = 2
d) 4, 2, 3 = 1, 5
e) 1 = 3, 5, 4, 2

Added by Cheryl L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

06/20/2022

Step 1

Step 1:** Calculate the total magnetic field at the center of the loops for each case by using the formula: $B_{\text{net}} = \frac{\mu_0 I}{2r} - \mu_0 \frac{I}{4r}$ ** Show more…

Show all steps

Thanks for your feedback!

Problem 17 Consider the following current loops, which have the same current I in every loop. Rank the following cases based on the magnitude of the total magnetic field at the center of the loops, greatest first a) 5, 1 = 3, 2, 4 b) 2, 4, 5, 1 = 3 c) 3 = 1, 4, 5 = 2 d) 4, 2, 3 = 1, 5 e) 1 = 3, 5, 4, 2
