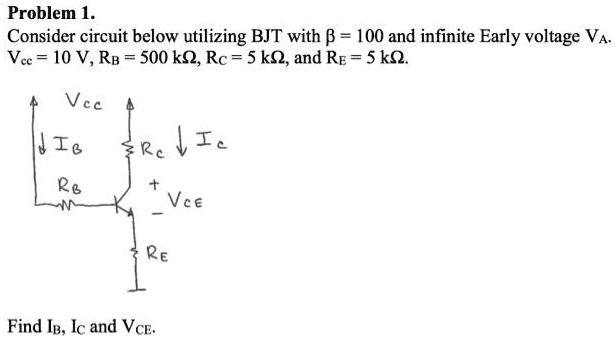

Problem 1. Consider circuit below utilizing BJT with (eta = 100) and infinite Early voltage (V_A). (V_{cc} = 10) V, (R_B = 500) k(Omega), (R_C = 5) k(Omega), and (R_E = 5) k(Omega). Find (I_B), (I_C) and (V_{CE}).
