Question

Cell Voltage / V 12- Charge Discharge 1.0- 0.82 V 0.95 V 1.56 Ah 0.8 0.74 V 0.59 V 06- 1.37 Ah 0.0 0.5 1.0 1.5 Capacity/Ah

          Cell Voltage / V
12-
Charge
Discharge
1.0-
0.82 V
0.95 V
1.56 Ah
0.8
0.74 V
0.59 V
06-
1.37 Ah
0.0
0.5
1.0
1.5
Capacity/Ah
Cell Voltage / V 12- Charge Discharge 1.0- 0.82 V 0.95 V 1.56 Ah 0.8 0.74 V 0.59 V 06- 1.37 Ah 0.0 0.5 1.0 1.5 Capacity/Ah

Added by Cynthia B.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Problem 2. A hypothetical flow battery demonstrates the following charge-discharge profiles. Calculate coulombic efficiency and energy efficiency for this cycle. GIVE PROPER ASSUMPTIONS Cell Voltage/V 0.0 06 0.8 1.0 12 0.74V 0.82 V 1 Discharge -Charge 0.5 Capacity IAh 1.0 1.37 Ah A6S0 1.56 Ah 0.95
Close icon
Play audio
Feedback
Powered by NumerAI
Jennifer Stoner Danielle Fairburn
Kathleen Carty verified

Madhur L and 63 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
consider-a-two-cell-series-connected-battery-pack-where-cell-states-of-charge-are-z1099z_1099z1099-and-z2097z_2097z2097-and-where-the-cells-have-total-charge-capacity-q131q_131q131ah-and-q23-38916

Consider a two-cell series-connected battery pack where cell states of charge are z1=0.99 and z2=0.97, and where the cells have total charge capacity Q1=31Ah and Q2=32Ah. If zmin=0.1, and the cells can be considered to have constant OCV of 3.3V, what is the total battery discharge energy for this battery pack (in Wh)? Round your answer to the nearest Wh. (Note that this configuration is the same as in Question 2, which might save you some math.)

Madhur L.
do-3-the-current-in-the-figure-below-is-076-a-let-the-interna-resistance-of-battery-be-r1-12-0-and-the-internal-resistance-of-battery-be-r2-140-60-v-90v-battery-battery-find-the-voltage-drop-40103

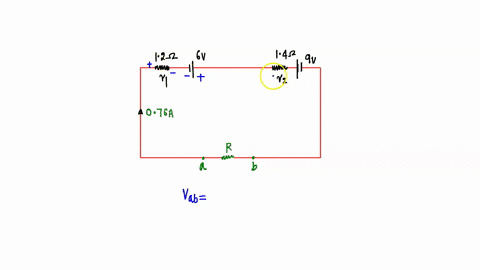

The current in the figure below is 0.76 A. (Let the internal resistance of battery 1 be r1 = 1.2 Ω and the internal resistance of battery 2 be r2 = 1.4 Ω.) (a) Find the voltage drop Vab. (b) Find the power dissipated in R. (c) Find the useful electric power supplied by battery 2. (Note: Do not forget the internal resistance of battery 2.) (d) Find the rate at which chemical energy is stored in battery 1. (Note: Do not include power dissipated in the internal resistor of battery 1 in your answer.)

Sahil K.
answer-the-whole-question-questiontwo-a-battery-with-its-terminal-voltage-of-200-v-is-supplied-with-power-from-type-a-chopper-circuit-the-output-voltage-of-the-chopper-consists-of-rectangula-45604

Adi S.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,694 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,539 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,222 solutions
*

Transcript

-

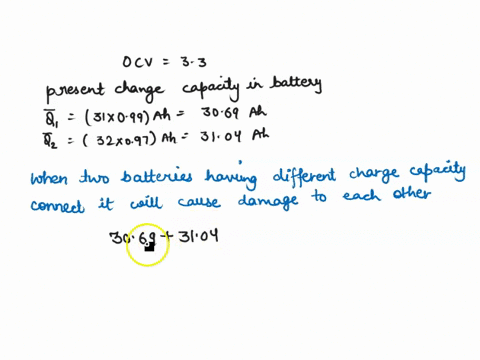

00:01 High in the quotient it is given that we have z1 is equal to 0 .99 we have z2 is equal to 0 .97 we have q1 is equal to 31 ampere hour and we have q2 is equal to 32 ampere hour we have z minimum is equal to 0 .1 and we have ocv is equal to 3 .3 now present change capacity in battery will be q1 bar will be equal to 31 multiplied by 0 .99 ampere hour so this will be equal to 30 .69 ampere hour and we have q2 bar is equal to 32 multiplied by 0 .97 ampere hour so this will be equal to 31 .04 ampere hour now when two batteries having different charge capacity connect it connect it will cause damage to each other so for calculation we will take average of capacity so will be equal to 30 .69 plus 31 .04 upon 2 so this will be equal to 30 .865 ampere hour so when two batteries connect in series then total ocv will be equal to 2 multiplied by ocv which will be equal to 2 multiplied by 3 .3 which is equal to 6 .6 volt now…
Need help? Use Ace
Ace is your personal tutor. It breaks down any question with clear steps so you can learn.
Start Using Ace
Ace is your personal tutor for learning
Step-by-step explanations
Instant summaries
Summarize YouTube videos
Understand textbook images or PDFs
Study tools like quizzes and flashcards
Listen to your notes as a podcast
Continue solving this problem
Create a free account to:
  • View full step-by-step solution
  • Ask follow-up questions with Ace AI
  • Save progress and study later
Continue Free
Join the community

18,000,000+

Students on Numerade

Trusted by students at 8,000+ universities

Numerade

Get step-by-step video solution
from top educators

Continue with Clever
or



By creating an account, you agree to the Terms of Service and Privacy Policy
Already have an account? Log In

A free answer
just for you

Watch the video solution with this free unlock.

Numerade

Log in to watch this video
...and 100,000,000 more!


EMAIL

PASSWORD

OR
Continue with Clever
