Problem 2 An LR circuit (with an Inductance of 6 mH and Resistance of 3 mΩ) is charging. How much time has passed when the current is ¾ of its maximum?
Added by Michael O.
Close
Step 1
Step 1: The current in an LR circuit charging is given by: $I(t) = I_{max}(1 - e^{-t/\tau})$ where: $I(t)$ is the current at time t $I_{max}$ is the maximum current $\tau = L/R$ is the time constant L is the inductance R is the resistance Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The current in the RL circuit shown below reaches three-fourths its maximum value in 2.75 ms after the switch S1 is thrown. (a) Determine the time constant of the circuit (in ms). (b) Determine the resistance of the circuit (in Ω) if L = 150 mH.
Shaiju T.
(II) It takes 2.56$\mathrm { ms }$ for the current in an $L R$ circuit to increase from zero to 0.75 its maximum value. Determine $( a )$ the time constant of the circuit, $b$ ) the resistance of the circuit if $L = 31.0 \mathrm { mH } .$

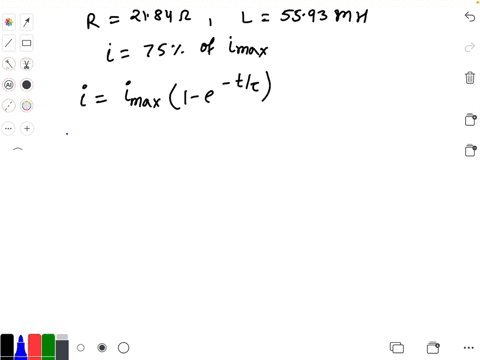

For an RL circuit with $R=21.84 \Omega$ and $L=55.93 \mathrm{mH}$, how long does it take the current to reach $75 \%$ of its maximum value?
