Problem 2 For the system in the following figure, $T = 2s$ and $G(z) = frac{K(z + 0.8)}{(z - 1)(z - 0.6)}$ (a) Determine the range of K for stability using the Routh-Hurwitz criterion. (b) Determine the range of K for stability using the Jury test.
Added by Frank S.
Close
Step 1
8) G(z)= (z-1)z-0.6) K(z+0.8) G(z)>=0 Thus, the system is stable. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 96 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A control system has the structure shown in Figure 2. (A) Determine the range of K for a stable system using the Routh stability criterion, then fill in the table above. (B) Find the value of K and natural frequency at ζ=0.7
Sikandar B.
The open-loop transfer function of a unity feedback control system is given by: k OpenLoop G(s) = (s + 2)(s + 4)(s^2 + 6s + 25) Discuss its stability using the Routh-Hurwitz criterion and find the range of k for stability.
Adi S.

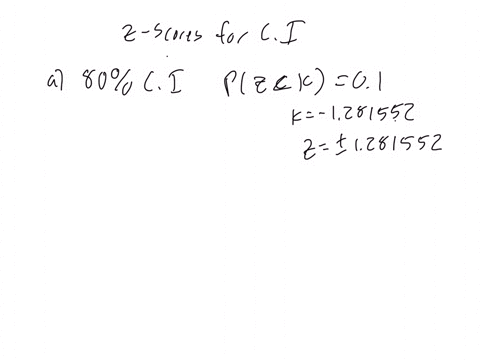

Question 1 Find the z∗ values based on a standard normal distribution for each of the following. (a) An 80% confidence interval for a proportion. Round your answer to two decimal places. ±z∗=± Enter your answer in accordance to the question statement (b) An 84% confidence interval for a slope. Round your answer to two decimal places. ±z∗=± Enter your answer in accordance to the question statement (c) A 92% confidence interval for a standard deviation. Round your answer to two decimal places. ±z∗=± Enter your answer in accordance to the question statement
