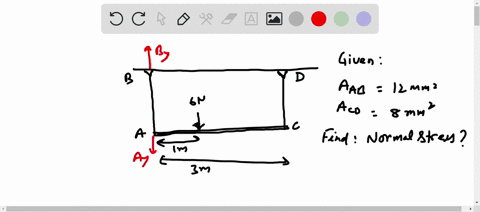

Problem 2 The beam is supported by two rods AB and CD that have cross-sectional areas of 12 $mm^2$ and 8 $mm^2$, respectively. If d = 1 m, determine the average normal stress in each rod. B A 6 kN D C 3 m
Added by Tina C.
Close
Step 1
0 m from A; distance between supports A and C is 3.0 m. Areas: A_AB = 12 mm^2, A_CD = 8 mm^2. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The beam is supported by two rods $A B$ and $C D$ that have cross-sectional areas of $12 \mathrm{mm}^{2}$ and $8 \mathrm{mm}^{2}$, respectively. If $d=1 \mathrm{m},$ determine the average normal stress in each rod.

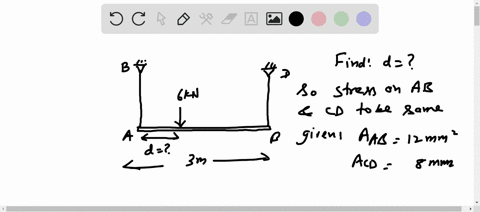

The beam is supported by two rods $A B$ and $C D$ that have cross-sectional areas of $12 \mathrm{mm}^{2}$ and $8 \mathrm{mm}^{2}$, respectively. Determine the position $d$ of the $6-\mathrm{kN}$ load so that the average normal stress in each rod is the same.
