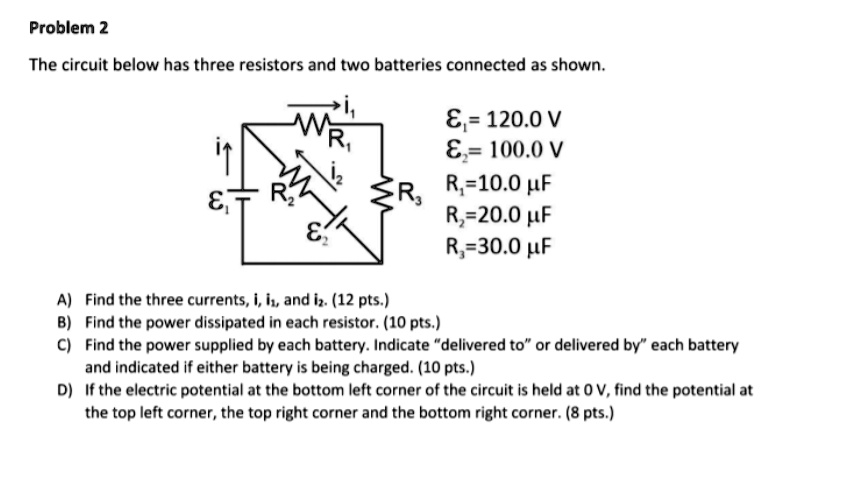

Problem 2 The circuit below has three resistors and two batteries connected as shown. E1 = 120.0 V E2 = 100.0 V R1 = 10.0 ? R2 = 20.0 ? R3 = 30.0 ? A) Find the three currents, i, i1, and i2. (12 pts.) B) Find the power dissipated in each resistor. (10 pts.) C) Find the power supplied by each battery. Indicate "delivered to" or "delivered by" each battery and indicate if either battery is being charged. (10 pts.) D) If the electric potential at the bottom left corner of the circuit is held at 0 V, find the potential at the top left corner, the top right corner and the bottom right corner. (8 pts.)
Added by Megan H.
Close
Step 1
Given: E = 120.0 V R1 = 40.0 Ω R2 = 20.0 Ω Using Ohm's Law: i1 = E / (R1 + R2) i1 = 120.0 / (40.0 + 20.0) i1 = 120.0 / 60.0 i1 = 2.0 A i2 = E / R2 i2 = 120.0 / 20.0 i2 = 6.0 A ** Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 68 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

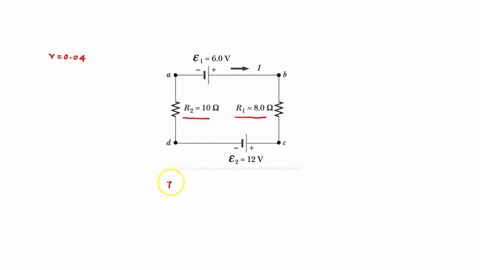

4) A single loop circuit contains two resistors and two batteries as shown a) Find the current in the circuit. b) What power is delivered to 12V battery, the 6V? c) If there is an internal resistance in battery Ε₁ equal to r₁ = 0.04 ̐ Find the terminal voltage between b and a (3 pts)
Sahil K.

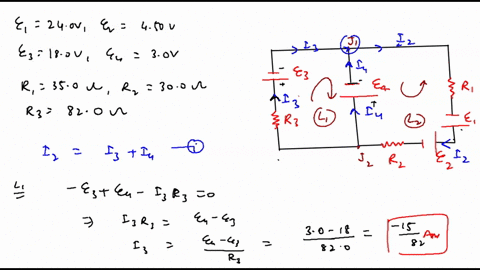

For the circuit shown in the figure, determine the magnitude of the currents I2, I3, and I4 passing through batteries 2, 3, and 4, respectively. In each case, determine whether the battery is supplying power or being charged. The batteries and resistors in the circuit are assumed to be ideal and have the given properties. E1 = 24.0 V E2 = 4.50 V E3 = 18.0 V E4 = 3.00 V R1 = 35.0 Ω R2 = 30.0 Ω R3 = 82.0 Ω Battery 2 is supplying power.
Khushbu R.
Each of the four circuits in the drawing consists of a single resistor whose resistance is either $R$ or $2 R,$ and a single battery whose voltage is either $V$ or $2 V$. Rank the circuits according to (a) the power and (b) the current delivered to the resistor, largest to smallest. Explain your answers. Problem The unit of voltage in each circuit is $V=12.0 \mathrm{~V}$ and the unit of resistance is $R=6.00 \Omega .$ Determine (a) the power supplied to each resistor and (b) the current delivered to each resistor. Check to see that your answers are consistent with your answers to the Concept Questions.
