Part A Consider the circuit in (Figure 1). Assume $i = 11$ A Is the interconnection in (Figure 1) valid? Yes, the interconnection is valid. No, the interconnection is not valid. Figure 10 V 50 V 5 A 40 V 1 of 1 ? Correct Previous Answers Part B Find the total power developed by the current sources. Express your answer to three significant figures and include the appropriate units. P = Value Units Submit Previous Answers Request Answer Incorrect; Try Again; 8 attempts remaining Provide Feedback

          Part A
Consider the circuit in (Figure 1). Assume $i = 11$ A
Is the interconnection in (Figure 1) valid?
Yes, the interconnection is valid.
No, the interconnection is not valid.
Figure
10 V
50 V
5 A
40 V
1 of 1
? Correct
Previous Answers
Part B
Find the total power developed by the current sources.
Express your answer to three significant figures and include the appropriate units.
P = Value Units
Submit Previous Answers Request Answer
Incorrect; Try Again; 8 attempts remaining
Provide Feedback
Show more…
Part A Consider the circuit in (Figure 1). Assume i = 11 A Is the interconnection in (Figure 1) valid? Yes, the interconnection is valid. No, the interconnection is not valid. Figure 10 V 50 V 5 A 40 V 1 of 1 ? Correct Previous Answers Part B Find the total power developed by the current sources. Express your answer to three significant figures and include the appropriate units. P = Value Units Submit Previous Answers Request Answer Incorrect; Try Again; 8 attempts remaining Provide Feedback

Added by Pilar J.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Problem 2.4 Consider the circuit in (Figure 1). Assume i=11A Part A Is the interconnection in (Figure 1) valid? Yes, the interconnection is valid. No, the interconnection is not valid. Previous Answers Correct Part B Find the total power developed by the current sources. Express your answer to three significant figures and include the appropriate units. X Incorrect; Try Again; 8 attempts remaining Provide Feedback Consider the circuit in (Figure 1). Assume i=11A Is the interconnection in (Figure 1) valid? Yes, the interconnection is valid. No, the interconnection is not valid. Previous Answers Correct Part B Find the total power developed by the current sources. Express your answer to three significant figures and include the appropriate units. Previous Answers Request Answer Incorrect; Try Again; 8 attempts remaining Provide Feedback Figure Part A i=11A Correct Part B 10V 5A
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Kathleen Carty
Jennifer Stoner verified

Urvashi Arora and 69 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
problem-7-consider-the-circuit-in-the-figure-with-the-current-directions-defined-as-shown-there-are-four-resistors-in-this-circuit-ri-rz-r3-and-ry-and-four-batteries-with-emfs-81-165v-82-35v-08641

Problem 7: Consider the circuit in the figure, with the current directions defined as shown. There are four resistors in this circuit (R1, R2, R3, and R4) and four batteries with emfs E1 = 16.5V, E2 = 3.5V, E3 = 8.5V, and E4 = 24.4V, each with internal resistance given by R5, as marked in the figure. Calculate the current in amps.

Urvashi A.
4-a-figure-4a-shows-a-parallel-rlc-circuit-connected-to-an-ac-voltage-supplygiven-that-vs11010vr100x100-and-xc50-figure-4a-determine-i-the-currents-irilic-in-polar-form-ii-the-total-current-93955

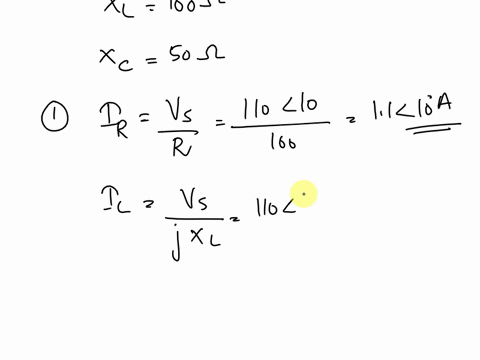

4. (a) Figure 4(a) shows a parallel RLC circuit connected to an AC voltage supply. Given that Vs=110∠10 V, R=100 Ω, XL=100 Ω and XC = 50 Ω. Figure 4(a) Determine: i) the currents IR, IL, IC in polar form; ii) the total current IT of the circuit in polar form; iii) the total impedance of the circuit (Z) in polar form; iv) the phase angle between supply current and voltage of the circuit; v) the power dissipated by the resistor (P). (b) Figure 4(b) shows a series-parallel circuit, where f = 15.9 kHz, R = 25 Ω, L = 5 mH, and C = 0.022 μ F. Determine: i) the reactance of the inductor (XL); ii) the reactance of the capacitor (XC); iii) the total impedance of the circuit (Z) in rectangular form; iv) the phase angle between supply current and voltage of the circuit. Figure 4(b) (c) To improve the overall power factor of the supply system, installation of a capacitor bank is one of the common methods. Explain why the capacitor bank is connected in parallel with the loads.
