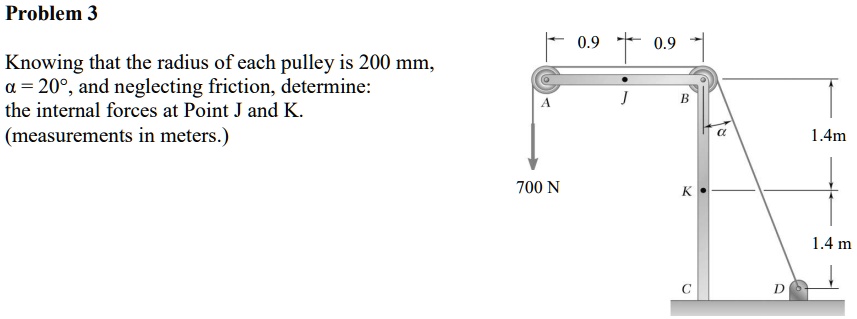

Problem 3 Knowing that the radius of each pulley is 200 mm, $\alpha$ = 20°, and neglecting friction, determine: the internal forces at Point J and K. (measurements in meters.)

          Problem 3
Knowing that the radius of each pulley is 200 mm,
$\alpha$ = 20°, and neglecting friction, determine:
the internal forces at Point J and K.
(measurements in meters.)

Problem 3
Knowing that the radius of each pulley is 200 mm,
α = 20°, and neglecting friction, determine:
the internal forces at Point J and K.
(measurements in meters.)

Added by Tanya B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sonu L

Step 1

We can use the equation for the tension in a rope wrapped around a pulley: Tension = (mass * acceleration) + (2 * mass * gravity) Given that the mass is 0.9 kg and the acceleration is 20 m/s^2, we can calculate the tension: Tension = (0.9 kg * 20 m/s^2) + (2 * Show more…

Show all steps

Thanks for your feedback!

Problem 3 0.9 0.9 Knowing that the radius of each pulley is 200 mm, = 20, and neglecting friction, determine: the internal forces at Point J and K. (measurements in meters.) A J B a 1.4m 700 N K 1.4 m C
