Problem 3 R? L + V_A ? R? The switch has been closed for a long time. At t=0 s it opens. V_A=10 V, R?=1 k?, R?=100 k?, L=1 mH. (A) What is the voltage over R? at t=0? s? (B) What is the time constant ? for the inductor to release its stored energy?
Added by Joseph H.
Close
Step 1
However, since the inductor opposes changes in current, it will try to maintain the current flowing through it. This means that initially, the current through the inductor will remain the same. Using Ohm's Law, we can calculate the current flowing through the Show more…
Show all steps
Your feedback will help us improve your experience
Gokul R Nair and 50 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

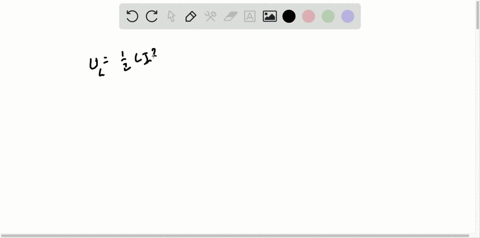

In the circuit, switch $S$ is opened at $t=0$ after having been closed for a long time. (a) How much energy is stored in the inductor at $t=0 ?$ (b) What is the instantaneous rate of change of the inductor's energy at $t=0 ?$ (c) What is the average rate of change of the inductor's energy between $t=0.0$ and $t=1.0 \mathrm{s} ?(\mathrm{d})$ How long does it take for the current in the inductor to reach 0.0010 times its initial value? (FIGURE CANNOT COPY)

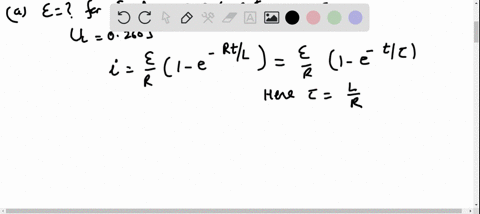

In Fig. 30.11, switch $S_1$ is closed while switch $S_2$ is kept open. The inductance is $L = 0.115$ H, and the resistance is $R = 120 \, \Omega$. (a) When the current has reached its final value, the energy stored in the inductor is 0.260 J. What is the emf $\varepsilon$ of the battery? (b) After the current has reached its final value, $S_1$ is opened and $S_2$ is closed. How much time does it take for the energy stored in the inductor to decrease to 0.130 J, half of the original value?
Inductance
The R-L Circuit
In the circuit, switch $S$ is opened at $t=0$ after having been closed for a long time. (a) How much energy is stored in the inductor at $t=0 ?$ (b) What is the instantaneous rate of change of the inductor's energy at $t=0 ?$ (c) What is the average rate of change of the inductor's energy between $t=0.0$ and $t=1.0 \mathrm{s} ?$
