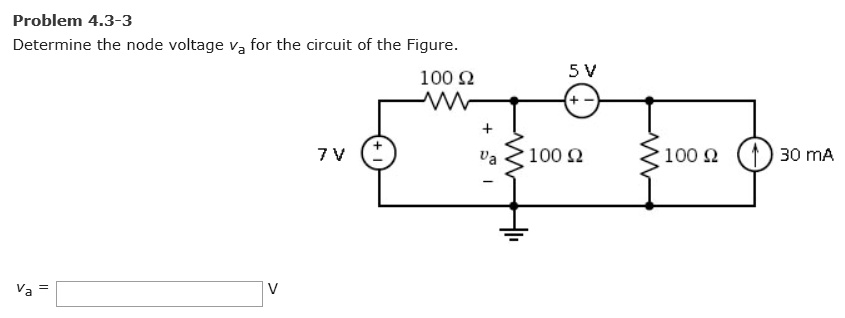

Problem 4.3-3 Determine the node voltage $v_a$ for the circuit of the Figure. $v_a = $ V 100 ? 5 V + + 7V + $v_a$ 100 ? 100 ? 30 mA
Added by Gerald E.
Close
Step 1
First, let's label the nodes in the circuit. We'll call the node connected to the 5V source as Node A, the node connected to the 7V source as Node B, and the node connected to the 30mA current source as Node C. Show more…
Show all steps
Your feedback will help us improve your experience
C D and 62 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
P 4.3-14 The voltage source in the circuit shown in Figure P 4.3-14 supplies 83.802 W. The current source supplies 17.572 W. Determine the values of the node voltages v1 and v2.
Adi S.
Q3) Using nodal analysis, determine the voltage across each resistor for the network of Fig. 1. 601 An JA 41 69 20 V Fig. 1. 7 9 60 4 J 9 ?
Ameer S.
10.14 Calculate the voltage at nodes 1 and 2 in the circuit of Fig: 10.63 using nodal analysis.
Madhur L.
