Draw a free-body diagram of the system skydiver-parachute. Draw the vectors starting at the black dot. The location and orientation of the vectors will be graded. The exact length of your vectors will not be graded but the relative length of one to the other will be graded.
Added by Naomi C.
Close
Step 1
Since the skydiver is floating downward at a constant speed, the forces acting on him must be balanced. The two main forces are gravity (acting downward) and air resistance or drag (acting upward). Show more…
Show all steps
Your feedback will help us improve your experience
Prabhu Ramji and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Write the given vector terms in i and j vector component form. Find the horizontal and vertical components of the vector with the given length and direction.
Julie S.
A house cat is looking for a warm place to take a nap. In the house there are 2 windows facing the sun: a window pane made of green glass and a window pane made of clear glass. Beneath which window should the cat nap? Why?
Ankur S.

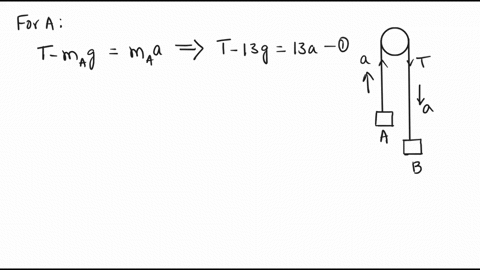

Part B Draw a free-body diagram for the counterweight. Draw the vectors starting at the black dot. The location, orientation, and relative length of the vectors will be graded. The exact length of the vectors will not be graded.
