Problem 4.90 Part A The allowable stress is $\sigma_{allow}$ = 19.2 ksi . (Figure 1) Determine the maximum axial force $P$ that can be applied to the steel plate. Express your answer to three significant figures and include the appropriate units. $P$= 9.31 kip Incorrect; Try Again; 4 attempts remaining Figure P 0.25 in. 1 in. 5 in. 0.25 in. 2.5 in. 0.25 in. P
Added by Rebecca A.
Close
Step 1
The plate has a hole, so we need to subtract the area of the hole from the total area. The width of the plate is 5 in, and the thickness is 0.25 in. The diameter of the hole is 1 in. Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 81 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the maximum axial force $P$ that can be applied to the steel plate. The allowable stress is $\sigma_{\text {allow }}=21 \mathrm{ksi}$.
Determine the maximum axial force $P$ that can be applied to the bar. The bar is made from steel and has an allowable stress of $\sigma_{\text {allow }}=21 \mathrm{ksi}$.

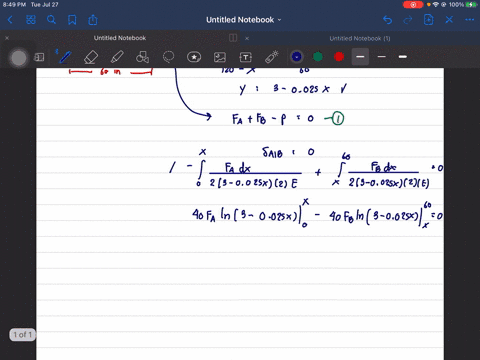

The tapered member is fixed connected at its ends $A$ and $B$ and is subjected to a load $\mathbf{P}$. Determine the greatest possible magnitude for $\mathbf{P}$ without exceeding an average normal stress of $\sigma_{\text {allow }}=4$ ksi anywhere in the member, and determine the location $x$ at which $\mathbf{P}$ would need to be applied. The member is 2 in. thick.
