Problem #5) (20 points) Consider the pendulum and spring system of Figure 1. Here the mass of the pendulum rod is negligible. Drive the equation of motion using the Lagrange's formulation. Them linearize the system for small angles and determine the natural frequency. The length of the pendulum is L, the tip mass is M, and the spring stiffness is K.

          Problem #5) (20 points)
Consider the pendulum and spring system of Figure 1. Here the mass of the pendulum rod
is negligible. Drive the equation of motion using the Lagrange's formulation. Them
linearize the system for small angles and determine the natural frequency. The length of
the pendulum is L, the tip mass is M, and the spring stiffness is K.

Problem #5) (20 points)
Consider the pendulum and spring system of Figure 1. Here the mass of the pendulum rod
is negligible. Drive the equation of motion using the Lagrange's formulation. Them
linearize the system for small angles and determine the natural frequency. The length of
the pendulum is L, the tip mass is M, and the spring stiffness is K.

Added by Amanda H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Lainey Roebuck

Step 1

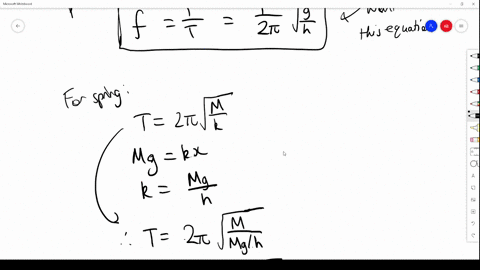

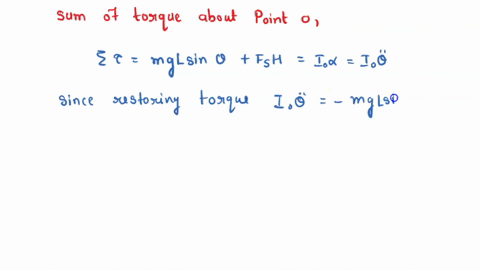

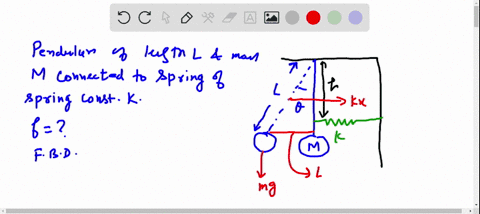

We have the gravitational force acting downwards, given by F_gravity = M * g, where g is the acceleration due to gravity. 2) We also have the tension force in the pendulum rod, which acts towards the center of the circular motion. This tension force can be broken Show more…

Show all steps

Thanks for your feedback!

Problem #5) (20 points) Figure 1: A simple pendulum connected to a spring. Given that the length of the pendulum is L, the mass of the tip is M, and the stiffness of the spring is K. Consider the pendulum and spring system shown in Figure 1. Here, the mass of the pendulum rod is m.
