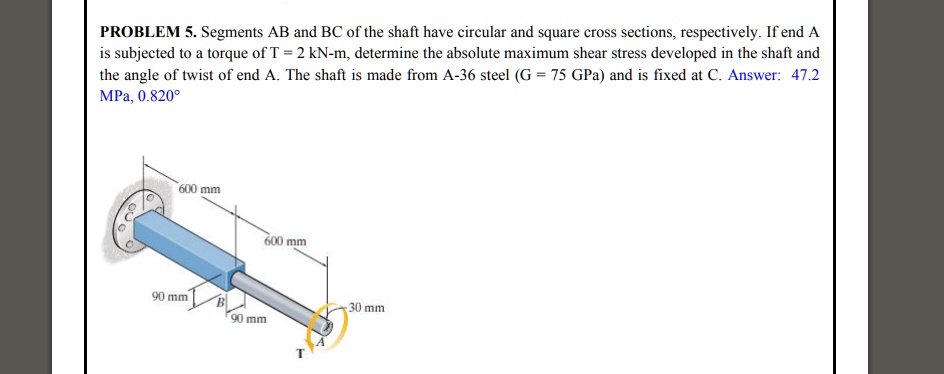

PROBLEM 5. Segments AB and BC of the shaft have circular and square cross sections, respectively. If end A is subjected to a torque of T = 2 kN-m, determine the absolute maximum shear stress developed in the shaft and the angle of twist of end A. The shaft is made from A-36 steel (G = 75 GPa) and is fixed at C. Answer: 47.2 MPa, 0.820°

Name: PROBLEM 5. Segments AB and BC of the shaft have circular and square cross sections, respectively. If end A is subjected to a torque of T = 2 kN-m, determine the absolute maximum shear stress developed in the shaft and the angle of twist of end A. The shaft is made from A-36 steel (G = 75 GPa) and is fixed at C. Answer: 47.2 MPa, 0.820°
Uploaded: 2023-06-27T00:34:46-08:00
Duration: 2 min 16 s
Channel: Madhur L
Description: PROBLEM 5. Segments AB and BC of the shaft have circular and square cross sections, respectively. If end A is subjected to a torque of T = 2 kN-m, determine the absolute maximum shear stress developed in the shaft and the angle of twist of end A. The shaft is made from A-36 steel (G = 75 GPa) and is fixed at C. Answer: 47.2 MPa, 0.820°

          PROBLEM 5. Segments AB and BC of the shaft have circular and square cross sections, respectively. If end A is subjected to a torque of T = 2 kN-m, determine the absolute maximum shear stress developed in the shaft and the angle of twist of end A. The shaft is made from A-36 steel (G = 75 GPa) and is fixed at C. Answer: 47.2 MPa, 0.820°

PROBLEM 5. Segments AB and BC of the shaft have circular and square cross sections, respectively. If end A is subjected to a torque of T = 2 kN-m, determine the absolute maximum shear stress developed in the shaft and the angle of twist of end A. The shaft is made from A-36 steel (G = 75 GPa) and is fixed at C. Answer: 47.2 MPa, 0.820°

Added by John C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

06/27/2023

Step 1

The shaft is made of A-36 steel, which has a shear modulus (G) of 75 GPa. A torque (T) of 2 kN-m is applied at end A, and the shaft is fixed at end C. We need to find the absolute maximum shear stress developed in the shaft and the angle of twist at end A. Show more…
