Problem 5 The hanging bar weighs 4 lbf and is connected to the 2 lbf block with a frictionless pin. The block slides along the horizontal plane with no friction. Determine the force P that will keep the bar hanging at a constant angle of 15 degrees.
Added by Vicente B.
Close
Step 1
There are three forces acting on it: the horizontal force P, the normal force N from the surface, and the force from the bar, $F_b$. Show more…
Show all steps
Your feedback will help us improve your experience
Km Neeraj and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In Fig. 12-17, suppose the length $L$ of the uniform bar is $2.75 \mathrm{~m}$ and its weight is $185 \mathrm{~N}$. Also, let the block's weight $W=300 \mathrm{~N}$ and the angle $\theta=30.0^{\circ}$. The wire can withstand a maximum tension of $500 \mathrm{~N}$. (a) What is the maximum possible distance $x$ before the wire breaks? With the block placed at this maximum $x$, what are the (b) horizontal and (c) vertical components of the force on the bar from the hinge at $A ?$

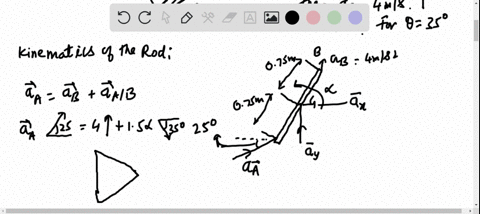

End $A$ of the 6 -kg uniform rod $A B$ rests on the inclined surface, while end $B$ is attached to a collar of negligible mass than slide along the vertical rod shown. When the rod is at rest, a vertical force $P$ is applied at $B,$ causing end $B$ of the rod to start moving upward with an acceleration of $4 \mathrm{m} / \mathrm{s}^{2}$. Knowing that $\theta=35^{\circ},$ determine the force $\mathbf{P}$.
Plane Motion of Rigid Bodies: Forces and Accelerations
Constrained Plane Motion
In the figure, suppose the length L of the uniform bar is 2.5 m and its weight is 220 N. Also, let the block's weight W = 350 N and the angle ́̑ = 43°. The wire can withstand a maximum tension of 370 N. (a) What is the maximum possible distance x before the wire breaks? With the block placed at this maximum x, what are the (b) horizontal and (c) vertical components of the force on the bar from the hinge at A? (a) Number Units (b) Number Units (c) Number Units
