Problem 6. The tube is made of 5 mm thick plastic and has the mean dimensions shown. Determine the average shear stress at points A and B if the tube is subjected to torque T = 500 N-m. Show the shear stress on volume elements located at these points. Neglect stress concentrations at the corners.

Name: Problem 6. The tube is made of 5 mm thick plastic and has the mean dimensions shown. Determine the average shear stress at points A and B if the tube is subjected to torque T = 500 N-m. Show the shear stress on volume elements located at these points. Neglect stress concentrations at the corners.
Uploaded: 2023-06-19T17:24:47-08:00
Duration: 1 min 45 s
Channel: Madhur L
Description: Problem 6. The tube is made of 5 mm thick plastic and has the mean dimensions shown. Determine the average shear stress at points A and B if the tube is subjected to torque T = 500 N-m. Show the shear stress on volume elements located at these points. Neglect stress concentrations at the corners.

          Problem 6. The tube is made of 5 mm thick plastic and has the mean dimensions shown. Determine the average shear stress at points A and B if the tube is subjected to torque T = 500 N-m. Show the shear stress on volume elements located at these points. Neglect stress concentrations at the corners.

Problem 6. The tube is made of 5 mm thick plastic and has the mean dimensions shown. Determine the average shear stress at points A and B if the tube is subjected to torque T = 500 N-m. Show the shear stress on volume elements located at these points. Neglect stress concentrations at the corners.

Added by Leroy G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

06/19/2023

Step 1

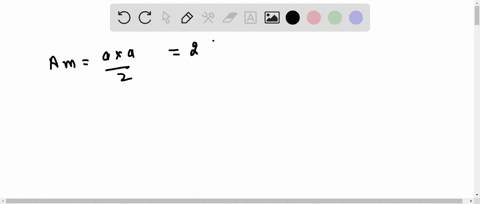

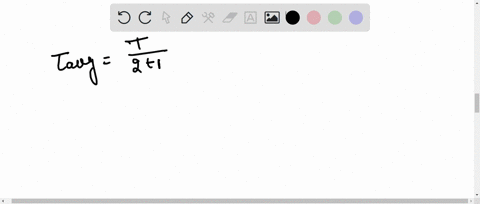

For a thin closed section the shear flow q is constant around the mean centerline and is given by q = T / (2 A_m), where A_m is the area enclosed by the mean centerline. Show more…
