Problem 6.115 The four-member \"JA\" frame is supported at A and E by smooth collars and at G by a pin. All the other joints are ball and sockets. (Figure 1) Part B Determine the $x$, $y$, $z$ components of the force which member BD exerts on member EDC using scalar notation. The collars at A and E and the pin at G only exert force components on the frame. Express your answers using three significant figures separated by commas. $D_x, D_y, D_z = $ 50.9,339,287 N Incorrect; Try Again; 5 attempts remaining Part C Determine the $x$, $y$, $z$ components of the force which member BD exerts on member ABC using scalar notation. Express your answers using three significant figures separated by commas. $D_x, D_y, D_z = $ N

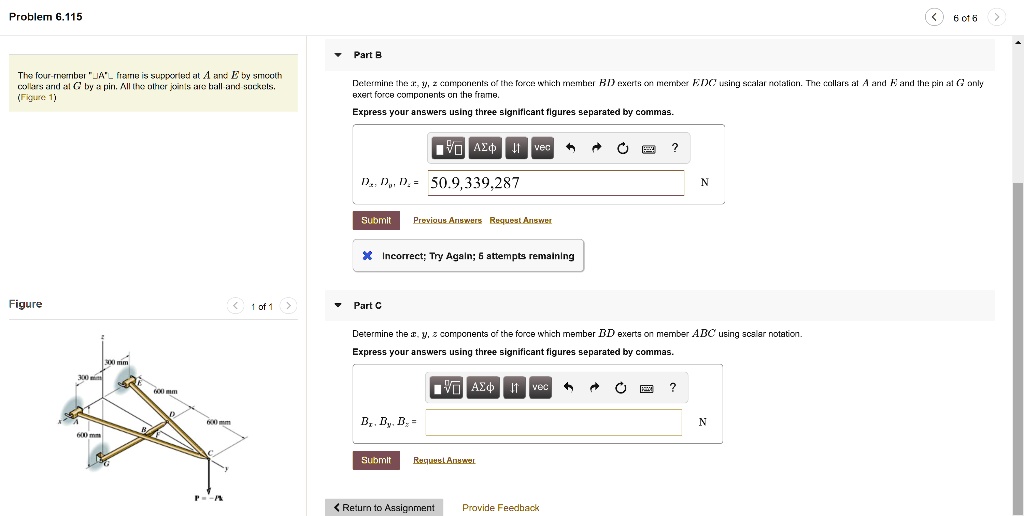

          Problem 6.115
The four-member \"JA\" frame is supported at A and E by smooth
collars and at G by a pin. All the other joints are ball and sockets.
(Figure 1)
Part B
Determine the $x$, $y$, $z$ components of the force which member BD exerts on member EDC using scalar notation. The collars at A and E and the pin at G only
exert force components on the frame.
Express your answers using three significant figures separated by commas.
$D_x, D_y, D_z = $ 50.9,339,287
N
Incorrect; Try Again; 5 attempts remaining
Part C
Determine the $x$, $y$, $z$ components of the force which member BD exerts on member ABC using scalar notation.
Express your answers using three significant figures separated by commas.
$D_x, D_y, D_z = $
N

Problem 6.115
The four-member J̈Af̈rame is supported at A and E by smooth
collars and at G by a pin. All the other joints are ball and sockets.
(Figure 1)
Part B
Determine the x, y, z components of the force which member BD exerts on member EDC using scalar notation. The collars at A and E and the pin at G only
exert force components on the frame.
Express your answers using three significant figures separated by commas.
Dx, Dy, Dz = 50.9,339,287
N
Incorrect; Try Again; 5 attempts remaining
Part C
Determine the x, y, z components of the force which member BD exerts on member ABC using scalar notation.
Express your answers using three significant figures separated by commas.
Dx, Dy, Dz =
N
