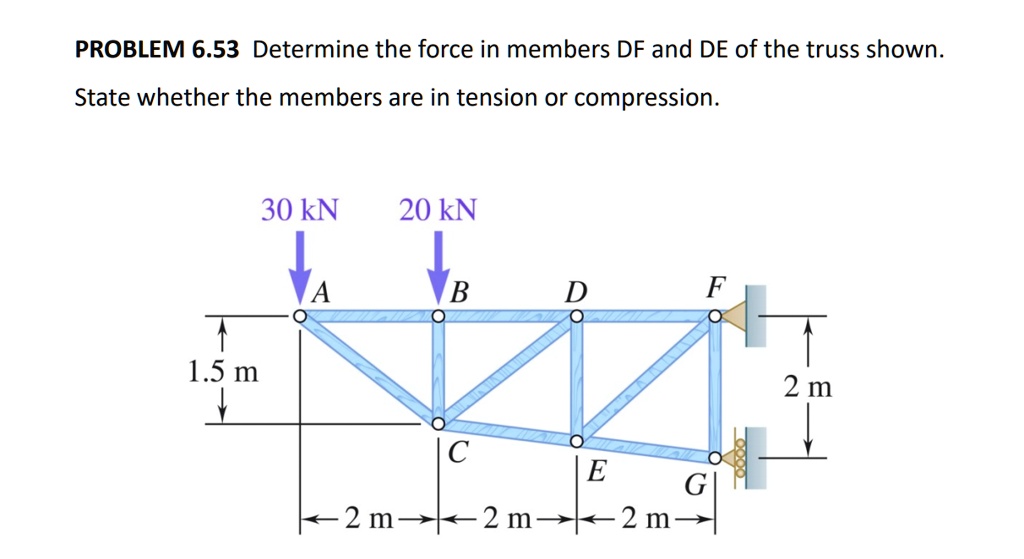

PROBLEM 6.53 Determine the force in members DF and DE of the truss shown. State whether the members are in tension or compression.
Added by Mariano C.
Close
Step 1
The sum of the vertical forces is equal to zero, so we have: VA + VB = 30 kN + 20 kN = 50 kN The sum of the moments about point A is also equal to zero, so we have: VB * 6 m = 30 kN * 1.5 m + 20 kN * 3.5 m Solving this equation, we find that VB = 20 kN. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 72 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem #3: [0.2 Points] The space truss supports a force F = [-500i + 600j + 700k] N. Determine the force in each member and state if the members are in tension or compression:
Sri K.
Determine the force in members GF, GD, and CD of the truss. State if they are in tension or compression.
Determine the force in each member of the truss and state if the members are in tension or compression. Hint: The vertical component of force at C must equal zero. Why?
