Problem-Solving with Network of Capacitances Determine a. Ceq b. qeq, q1, and q2, c. V1 and V2 for the following network of capacitances: 1. C1 = 10 mF and C2 = 2 mF in series with 12V = V 2. C1 = 4 ?F and C2 = 2 ?F in series with 12V = V The following series-parallel connection C1 = 2mF C2 = 3mF C3 = 4mF

          Problem-Solving with Network of Capacitances
Determine a. Ceq b. qeq, q1, and q2, c. V1 and V2 for the following network of capacitances:
1. C1 = 10 mF and C2 = 2 mF in series with 12V = V
2. C1 = 4 ?F and C2 = 2 ?F in series with 12V = V

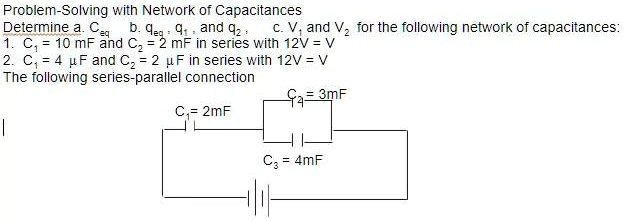

The following series-parallel connection
C1 = 2mF
C2 = 3mF
C3 = 4mF

Problem-Solving with Network of Capacitances
Determine a. Ceq b. qeq, q1, and q2, c. V1 and V2 for the following network of capacitances:
1. C1 = 10 mF and C2 = 2 mF in series with 12V = V
2. C1 = 4 ?F and C2 = 2 ?F in series with 12V = V
The following series-parallel connection
C1 = 2mF
C2 = 3mF
C3 = 4mF

Added by Joseph J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Bhushan Arora

03/07/2022

Step 1

Step 1: Calculate the equivalent capacitance for C2 and C3 in series: \[C_{23} = \frac{C2 \times C3}{C2 + C3} = \frac{3 \times 4}{3 + 4} = \frac{12}{7} \, mF\] Show more…
