Problem # 2. The steel rod is stress-free before the axial loads P1 = 150 kN and P2 = 90 kN are

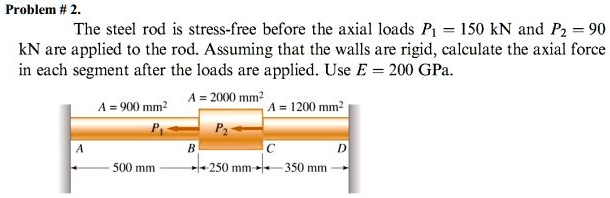

Name: Problem # 2. The steel rod is stress-free before the axial loads P1 = 150 kN and P2 = 90 kN are applied to the rod. Assuming that the walls are rigid, calculate the axial force in each segment after the loads are applied. Use E = 200 GPa. A = 900 mm^2, L = 500 mm; A = 2000 mm^2, L = 250 mm; A = 1200 mm^2, L = 350 mm.
Uploaded: 2023-08-28T14:24:17-08:00
Duration: 2 min 13 s
Channel: Madhur L
Description: Problem # 2. The steel rod is stress-free before the axial loads P1 = 150 kN and P2 = 90 kN are applied to the rod. Assuming that the walls are rigid, calculate the axial force in each segment after the loads are applied. Use E = 200 GPa. A = 900 mm^2, L = 500 mm; A = 2000 mm^2, L = 250 mm; A = 1200 mm^2, L = 350 mm.

Question

Penny Riley · Accepted Answer

Step 1: Label segments AB, BC, CD with areas A1=900 mm^2, A2=2000 mm^2, A3=1200 mm^2 and lengths
