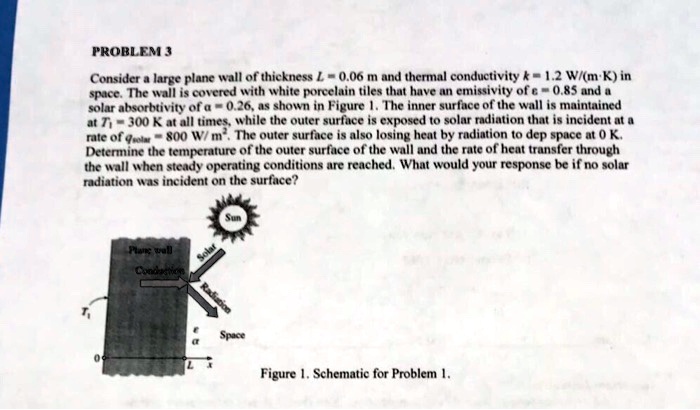

PROBLEM 3 Consider a large plane wall of thickness L = 0.06 m and thermal conductivity k = 1.2 W/(m·K) in space. The wall is covered with white porcelain tiles that have an emissivity of ? = 0.85 and a solar absorbtivity of ? = 0.26, as shown in Figure 1. The inner surface of the wall is maintained at T? = 300 K at all times, while the outer surface is exposed to solar radiation that is incident at a rate of q????? = 800 W/m². The outer surface is also losing heat by radiation to dep space at 0 K. Determine the temperature of the outer surface of the wall and the rate of heat transfer through the wall when steady operating conditions are reached. What would your response be if no solar radiation was incident on the surface?
Added by Timothy G.
Close
Step 1
The outer surface of the wall is exposed to solar radiation, which is absorbed and converted into heat. This heat is then conducted through the wall to the inner surface, which is maintained at a constant temperature. The outer surface also loses heat by radiation Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The inner and outer surfaces of a 25-cm-thick wall in summer are at 27°C and 35°C, respectively. The outer surface of the wall exchanges heat by radiation with the surrounding surfaces at 40°C, and convection with ambient air also at 40°C with a convection heat transfer coefficient of 8 W/m²·K. Solar radiation is incident on the surface at a rate of 150 W/m². If both the emissivity and the solar absorptivity of the outer surface are 0.8, determine the effective thermal conductivity of the wall. (Round your answer up to 4 decimal places.) Take σ.
Penny R.

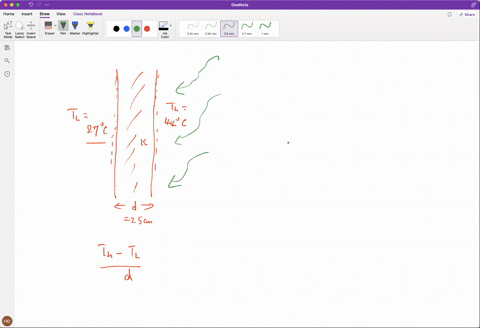

The inner and outer surfaces of a 25-cm-thick wall in summer are at 27°C and 44°C, respectively. The outer surface of the wall exchanges heat by radiation with surrounding surfaces at 40°C, and convection with ambient air also at 40°C with a convection heat transfer coefficient of 8 W/m²·K. Solar radiation is incident on the surface at a rate of 150 W/m². If both the emissivity and the solar absorptivity of the outer surface are 0.8, determine the effective thermal conductivity of the wall.
