Project 02
Hex-to-Seven-Segment Decoder:
Description: Design a circuit that converts a 4 bit binary input to a signal that can drive a seven-segment display to display numbers from 0 to 9 and hex digits from A to F.

A Hex-to-Seven-Segment Decoder is a combinational circuit that converts a 4 bit binary number to an appropriate code for the selection of segments in an indicator used to display the hexadecimal digit in a familiar form. The seven outputs of the decoder (a, b, c, d, e, f, g) select the corresponding segments in the display, as shown in Fig. P4.9(a). The numeric display chosen to represent the decimal digit is shown below.

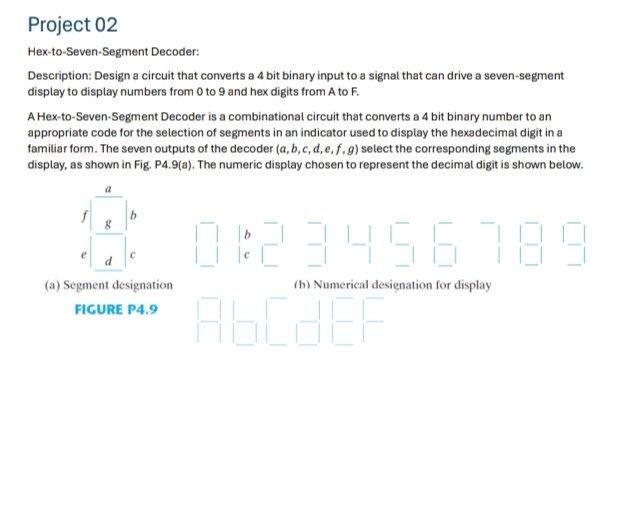

(a) Segment designation
FIGURE P4.9
(b) Numerical designation for display
□
□ -
