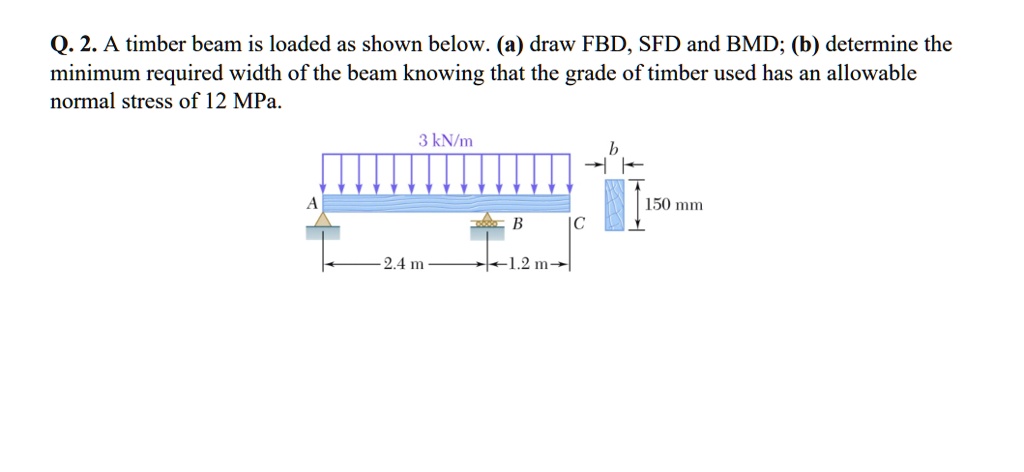

Q. 2. A timber beam is loaded as shown below. (a) draw FBD, SFD and BMD; (b) determine the minim

Question

Sri K · Answer

In the given question, we have not mentioned what is Sigma all and T all. So, Sigma all will be

Anand Jangid · Answer

So, here in this question the maximum bending stress occurs at a point of maximum bending moment

Rashmi Sinha · Answer

uh, first consider, uh, the diagram. A where, um, the with off the baby is 1 40. That is 0.1 for

Ankur S · Answer

students in this question we have given that if overhanging beam is made from the wood having al

Adi S · Answer

In this question there is a rectangular timber beam. This is rectangular timber beam. The dimens

Q. 2. A timber beam is loaded as shown below. (a) draw FBD, SFD and BMD; (b) determine the minimum required width of the beam knowing that the grade of timber used has an allowable normal stress of 12 MPa.
